| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| DIN Size | |
| Features | |
| Number of Terminations | |
| Operating Temperature | |
| Operating voltage, Umax. AC/DC | |
| Power (Watts) | |
| Power Rating | |
| Rated dissipation, P70 | |
| Resistance | |
| Resistance Range | |
| Resistance Tolerance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| UL 94 V-0 |

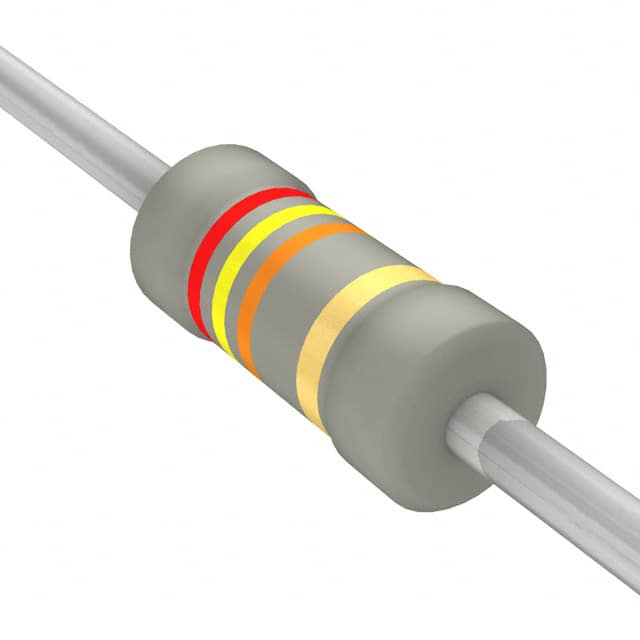

The Vishay Dale PR02000202402JR500 is a high-quality metal film resistor designed for general-purpose power applications. It features a resistance value of 24 kΩ with a tolerance of ±5% and a power rating of 2W.
This resistor is constructed with a homogeneous metal alloy film deposited on a ceramic body, with tinned copper-clad iron or electrolytic copper leads. It meets active and passive flammability requirements as defined in IEC 60115-1 and has a flameproof insulation coating that meets UL 94 V-0 requirements. The encapsulation is resistant to all cleaning solvents in accordance with IEC 60068-2-45.
The PR02000202402JR500 has an operating temperature range of -55°C to 155°C and a temperature coefficient of ±250 ppm/K. Its axial package dimensions are 0.154" diameter by 0.394" length (3.90mm x 10.00mm). This component is AEC-Q200 qualified, making it suitable for demanding applications.
Key specifications include a 24 kΩ resistance, 2W power rating, ±5% tolerance, and an operating voltage of up to 500V AC/DC. The series is designed with defined fusing characteristics and is suitable for applications in automotive electronics and lighting ballasts.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.01 | $0.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 24 kΩ.
The power rating is 2W.
The tolerance is ±5%.
The operating temperature range is -55°C to 155°C.
The package size is 0.154" Dia x 0.394" L (3.90mm x 10.00mm).
Yes, the PR02000202402JR500 resistor is AEC-Q200 qualified.
The maximum operating voltage is 500V AC/DC.
