| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
98 pcs
|
98 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Basic Specification | |
| Composition | |
| E-Series | |
| Features | |
| Lead Style | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Voltage | |
| Power (Watts) | |
| Rated Dissipation (Nominal @ P 70, 1 Ω ≤ R) | |
| Rated Dissipation (Nominal @ P 70, R < 1 Ω) | |
| Resistance | |
| Resistance Range | |
| Stability after Damp heat test | |
| Stability after Endurance test | |
| Stability after Soldering | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Termination Style | |
| Thermal Resistance | |
| Tolerance |

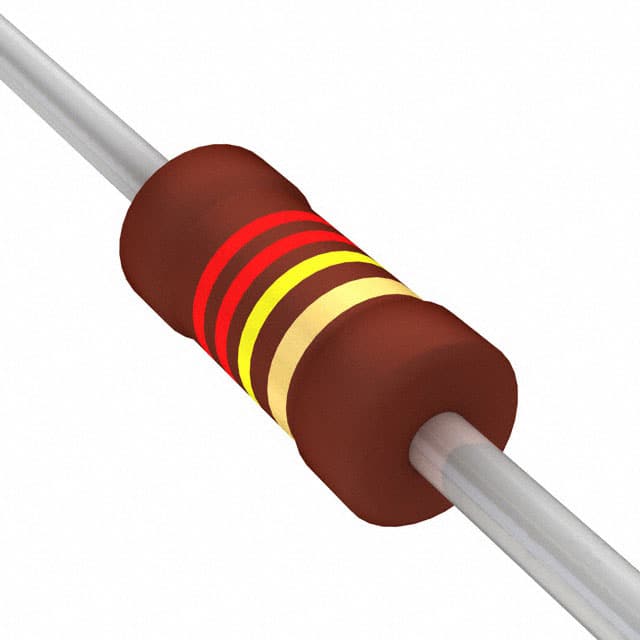

The Vishay Dale PR02000202203JR500 is a high-power metal film resistor designed for general-purpose power applications and automotive electronics. It features a resistance value of 220 kΩ with a tolerance of ±5% and a power rating of 2W.
Constructed with a homogeneous metal alloy film on a ceramic body, this resistor utilizes tinned copper or copper-clad iron connecting wires. It is coated with a non-flammable red lacquer that provides electrical, mechanical, and climatic protection, and is resistant to cleaning solvents per IEC 60068-2-45. The encapsulation meets UL 94 V-0 flammability requirements.
Key specifications include an operating temperature range of -55°C to 155°C and a temperature coefficient of ±250 ppm/°C. The axial package measures 0.154" Dia x 0.394" L (3.90mm x 10.00mm). This component is AEC-Q200 qualified, making it suitable for demanding automotive environments.
This resistor meets active and passive flammability requirements as defined in IEC 60115-1 and has defined fusing characteristics. Its stability after endurance testing (1000h, P70) is within ±(5% R + 0.1 Ω), after damp heat testing (56 days) is within ±(3% R + 0.1 Ω), and after soldering is within ±(1% R + 0.05 Ω).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.01 | $0.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 220 kΩ.
The power rating is 2W.
The tolerance is ±5%.
The operating temperature range is -55°C to 155°C.
Yes, this resistor is AEC-Q200 qualified.
The dimensions are 0.154" Dia x 0.394" L (3.90mm x 10.00mm).
