| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
900 pcs
|
900 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
900 pcs
|
900 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Voltage | |
| Power (Watts) | |
| Resistance | |
| Resistance Tolerance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance |

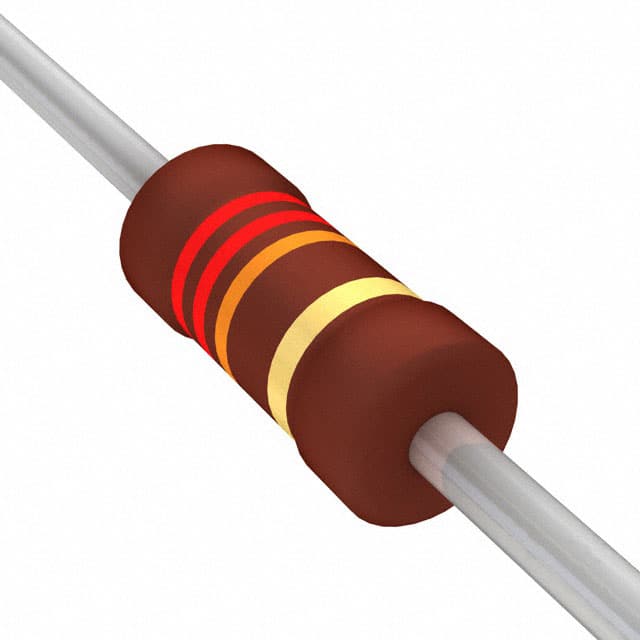

The Vishay Dale PR02000202202JA100 is a through-hole power metal film resistor designed for general purpose power applications. It features a resistance value of 22 kΩ with a tolerance of ±5% and a power rating of 2W.
This resistor operates across a wide temperature range from -55°C to 155°C, with a temperature coefficient of ±250ppm/°C. The component is housed in an axial package with dimensions of 0.154" Dia x 0.394" L (3.90mm x 10.00mm).
Key specifications include a maximum operating voltage of 350V AC/DC and AEC-Q200 qualification, making it suitable for automotive electronics. The resistor's construction involves a homogeneous metal alloy film deposited on a ceramic body, with tinned copper leads.
It meets flammability requirements as defined in IEC 60115-1 and features a flameproof insulation coating meeting UL 94 V-0 requirements. The encapsulation is resistant to cleaning solvents per IEC 60068-2-45.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.01 | $0.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 22 kΩ.
The power rating is 2W.
The tolerance is ±5%.
The operating temperature range is -55°C to 155°C.
The temperature coefficient is ±250ppm/°C.
It comes in an axial package.
Yes, this resistor is AEC-Q200 qualified.
