| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Resistance Tolerance | |
| Supplier Device Package | |
| Technology | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance |

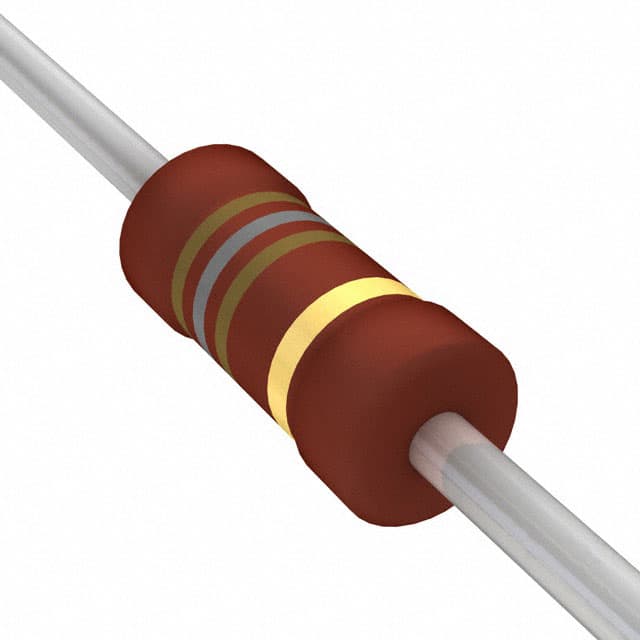

This Vishay Dale PR02000201800JA100 is an axial metal film resistor designed for general purpose power applications. It offers a power rating of 2W and a resistance value of 180 Ohms with a tolerance of ±5%. The temperature coefficient is ±250ppm/°C, and it operates within a temperature range of -55°C to 155°C.
The resistor features a flame retardant coating and meets AEC-Q200 qualifications, making it suitable for automotive electronics. Its construction utilizes a homogeneous metal alloy film deposited on a ceramic body, with tinned copper or copper-clad iron connecting wires. The encapsulation is resistant to cleaning solvents.
The component has a size of 0.154" Dia x 0.394" L (3.90mm x 10.00mm) and is designed for through-hole mounting. It has 2 terminations and is classified under the E24/E96 series.
Key specifications include a resistance range from 0.33 Ohms to 1 MΩ and an operating voltage of up to 500V AC/DC. The datasheet specifies stability after endurance and damp heat tests, as well as after soldering.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.01 | $0.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 180 Ohms.
The power rating is 2W.
The tolerance is ±5%.
The temperature coefficient is ±250ppm/°C.
The operating temperature range is -55°C to 155°C.
The package type is Axial.
Yes, the resistor is Automotive AEC-Q200 qualified.
