| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Basic Specification | |
| Composition | |
| DIN Size | |
| Features | |
| Number of Terminations | |
| Operating Temperature | |
| Operating voltage, Umax. AC/DC | |
| Power (Watts) | |
| Power Rating | |
| Rated Dissipation P70 (@ 1 Ω ≤ R) | |
| Rated Dissipation P70 (@ R < 1 Ω) | |
| Resistance | |
| Resistance Range | |
| Resistance Tolerance | |
| Stability after Damp heat test | |
| Stability after Endurance test | |
| Stability after Soldering | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Thermal Resistance (Rth) | |
| Tolerance | |
| UL 94 V-0 |

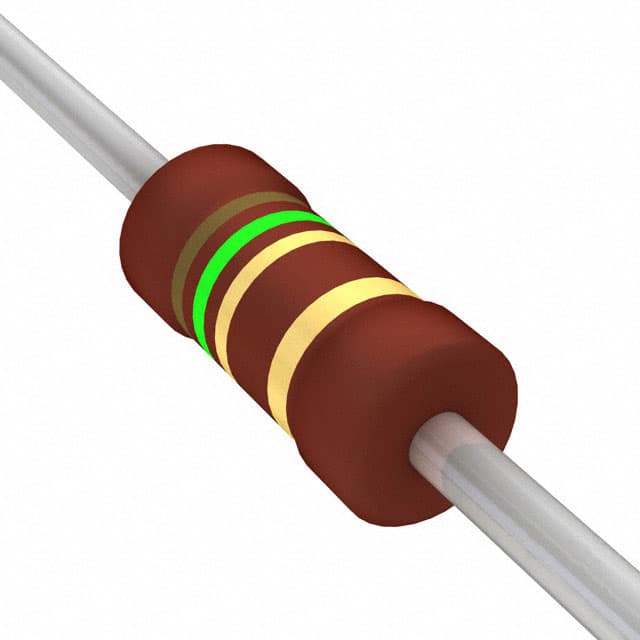

The Vishay Dale PR02000201508JA100 is a high-quality metal film resistor designed for general-purpose power applications. It offers a resistance value of 1.5 Ohms with a tight tolerance of ±5% and a power rating of 2W.
This resistor is built on a high-grade ceramic body with a homogeneous metal alloy film. It features tinned copper connecting wires and is coated with a non-flammable red lacquer for protection. The encapsulation is resistant to cleaning solvents according to IEC 60068-2-45.
Key specifications include a temperature coefficient of ±250ppm/°C and an operating temperature range of -55°C to 155°C. The axial package measures 0.154" Dia x 0.394" L (3.90mm x 10.00mm). The component is AEC-Q200 qualified, making it suitable for automotive electronics and lighting ballast applications.
It meets active and passive flammability requirements as defined in IEC 60115-1 and has a flameproof insulation coating meeting UL 94 V-0 requirements. The resistor also has defined fusing characteristics.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.01 | $0.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 1.5 Ohms.
The power rating is 2W.
The tolerance is ±5%.
The operating temperature range is -55°C to 155°C.
Yes, this resistor is AEC-Q200 qualified.
It uses a metal film construction.
