| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
26,000 pcs
|
26000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC-Q200 | |
| Automotive Grade | |
| Composition | |
| Features | |
| Lead Diameter | |
| Lead Pitch | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Voltage | |
| Power (Watts) | |
| Power Rating | |
| Rated Dissipation | |
| Resistance | |
| Resistance Range | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| UL 94 V-0 |

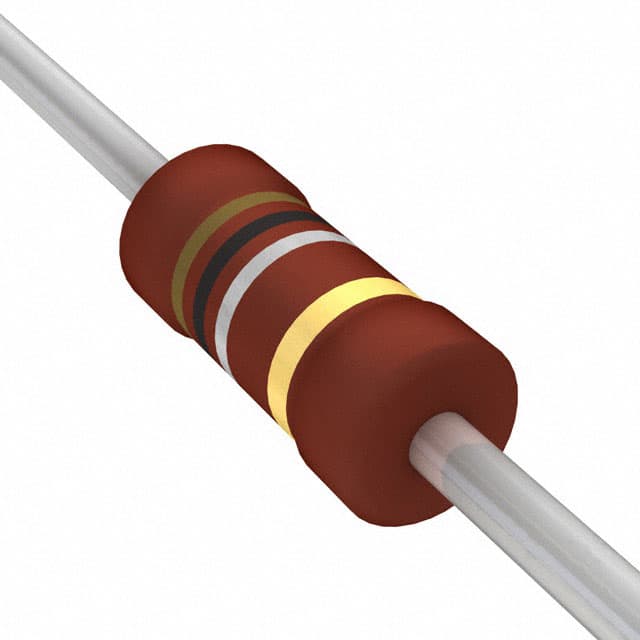

The Vishay PR02000201008JA100 is a high-power, axial-leaded metal film resistor designed for general-purpose power applications. It offers a resistance value of 1 Ohm with a tolerance of ±5% and a power rating of 2W. The resistor is constructed with a homogeneous metal alloy film deposited on a ceramic body, featuring tinned copper-clad iron or electrolytic copper connecting wires.
This component operates within a temperature range of -55°C to 155°C and has a temperature coefficient of ±250 ppm/°C. The encapsulation is coated with a red, non-flammable lacquer that provides electrical, mechanical, and climatic protection, meeting UL 94 V-0 flammability requirements. The encapsulation is resistant to cleaning solvents per IEC 60068-2-45.
Key features include its high power capability in small packages, defined fusing characteristics, and AEC-Q200 qualification, making it suitable for demanding applications such as automotive electronics and lighting ballasts. The axial package type and specific dimensions are designed for through-hole mounting.
This resistor adheres to IEC 60115-1 basic specifications and is suitable for general-purpose power applications, automotive electronics, and lighting ballast circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.01 | $0.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 1 Ohm.
The power rating is 2W.
The tolerance is ±5%.
The temperature coefficient is ±250 ppm/°C.
The operating temperature range is -55°C to 155°C.
The maximum operating voltage is 500V.
Yes, the PR02000201008JA100 resistor is AEC-Q200 qualified.
