| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
965 pcs
|
965 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Q200 Qualified | |
| Automotive Grade | |
| Basic Specification | |
| Composition | |
| DIN Size | |
| Features | |
| Flammability | |
| Number of Terminations | |
| Operating Temperature | |
| Operating voltage, Umax. AC/DC | |
| Power (Watts) | |
| Power Rating | |
| Rated Dissipation (Nominal @ 1 Ω ≤ R) | |
| Rated Dissipation (Nominal @ R < 1 Ω) | |
| Resistance | |
| Resistance Range | |
| Stability after Damp heat test | |
| Stability after Endurance test | |
| Stability after Soldering | |
| Supplier Device Package | |
| Technology | |
| Temperature Coefficient | |
| Tolerance |

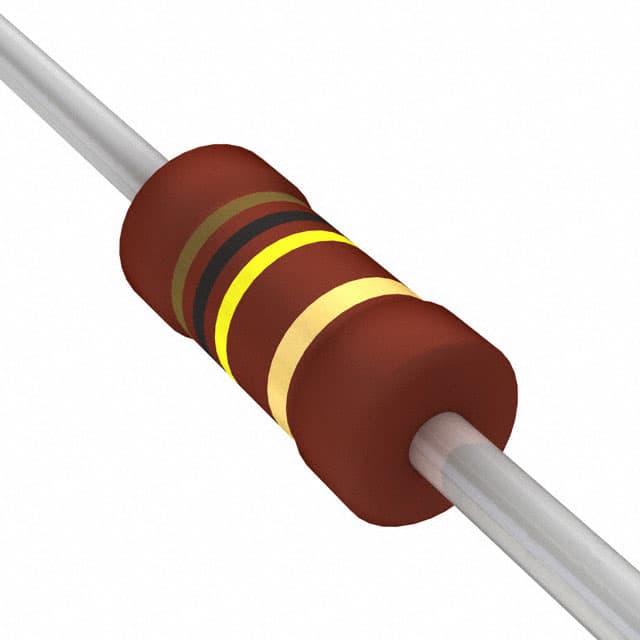

The Vishay Dale PR02000201003JA100 is a high-power metal film resistor designed for general-purpose power applications and automotive electronics. It features a homogeneous metal alloy film deposited on a ceramic body, with tinned copper-clad iron or electrolytic copper connecting wires.
This resistor offers a resistance of 100 kΩ with a tolerance of ±5% and a power rating of 2W. The operating temperature range is -55°C to 155°C, with a temperature coefficient of ±250 ppm/°C. The component is housed in an axial package with dimensions of 0.154" Dia x 0.394" L (3.90mm x 10.00mm).
Key features include AEC-Q200 qualification and a flameproof insulation coating that meets UL 94 V-0 requirements. The encapsulation is resistant to cleaning solvents per IEC 60068-2-45. The resistor meets active and passive flammability requirements as defined in IEC 60115-1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.01 | $0.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance of the PR02000201003JA100 resistor is 100 kΩ.
This resistor has a power rating of 2W.
The temperature coefficient is ±250 ppm/°C.
The operating temperature range is -55°C to 155°C.
Yes, this resistor is AEC-Q200 qualified.
