| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,500 pcs
|
6500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,900 pcs
|
1900 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Basic Specification | |
| Composition | |
| Features | |
| Flammability | |
| Lead Style | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Operating voltage, Umax. AC/DC | |
| Power (Watts) | |
| Rated Dissipation P70 (@ 1 Ω ≤ R) | |
| Rated Dissipation P70 (@ R < 1 Ω) | |
| Resistance | |
| Resistance Range | |
| Stability after Damp heat test | |
| Stability after Endurance test | |
| Stability after Soldering | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance |

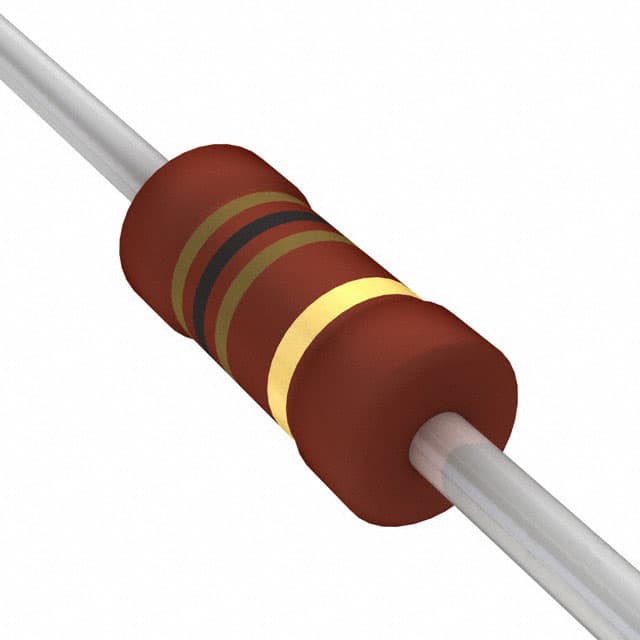

This Vishay Dale PR02000201000JA100 is a high-power metal film resistor designed for general-purpose power applications and automotive electronics. It features a resistance of 100 Ohms with a tolerance of ±5% and a power rating of 2W at 70°C.
The resistor has an axial package with dimensions of 0.154" diameter by 0.394" length. It is constructed with a metal film technology and has a temperature coefficient of ±250 ppm/°C. The operating temperature range is from -55°C to 155°C.
This component meets active and passive flammability requirements as defined in IEC 60115-1 and has a flameproof insulation coating that meets UL 94 V-0 requirements. It also features defined fusing characteristics and is AEC-Q200 qualified, making it suitable for demanding applications.
The encapsulation is resistant to all cleaning solvents in accordance with IEC 60068-2-45, providing robust protection in various environmental conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.01 | $0.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 100 Ohms.
The rated power dissipation at 70°C is 2W for resistance values of 1 Ohm or greater, and 1.2W for resistance values less than 1 Ohm.
The operating temperature range is -55°C to 155°C.
The tolerance is ±5%.
The temperature coefficient is ±250 ppm/K.
The dimensions are 0.154" diameter by 0.394" length (3.90mm x 10.00mm).
Yes, this resistor is AEC-Q200 qualified.
