| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
335 pcs
|
335 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
335 pcs
|
335 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Basic Specification | |
| Composition | |
| DIN Size | |
| E-Series | |
| Features | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Voltage | |
| Power (Watts) | |
| Rated Dissipation | |
| Resistance | |
| Resistance Range | |
| Supplier Device Package | |
| Technology | |
| Temperature Coefficient | |
| Tolerance | |
| UL 94 V-0 |

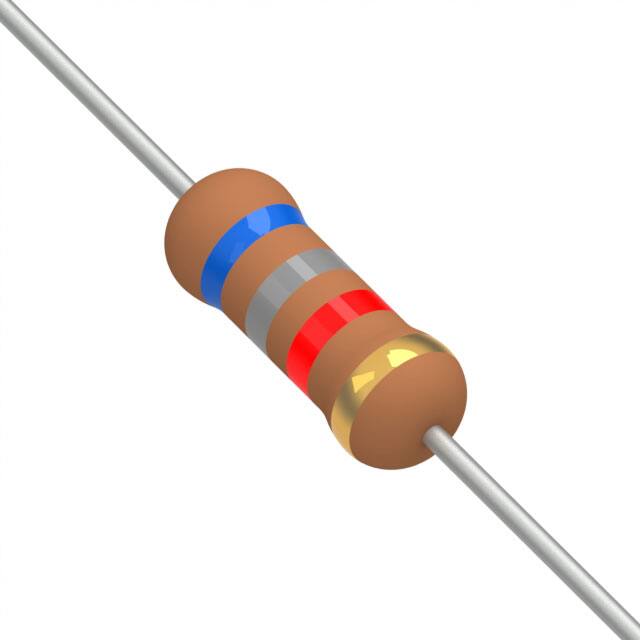

This Vishay Dale PR01000106801JA100 is a power metal film resistor designed for through-hole mounting. It features a resistance value of 6.8 kΩ with a tight tolerance of ±5% and a power rating of 1W at 70°C.
The resistor is constructed with a homogeneous metal alloy film deposited on a ceramic body, with tinned copper-clad iron or electrolytic copper lead wires. It is coated with a non-flammable red lacquer for protection and meets IEC 60068-2-45 resistance to cleaning solvents. The component operates across a wide temperature range of -55°C to 155°C with a temperature coefficient of ±250 ppm/K.
Applications include general-purpose power, automotive electronics, and lighting ballasts. The component meets active and passive flammability requirements as defined in IEC 60115-1 and its insulation coating meets UL 94 V-0 requirements. It is also AEC-Q200 qualified. The axial package has dimensions of 0.098" Dia x 0.256" L (2.50mm x 6.50mm).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.01 | $0.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 6.8 kΩ.
The tolerance is ±5%.
The power rating is 1W.
The operating temperature range is -55°C to 155°C.
The temperature coefficient is ±250 ppm/K.
The package size is 0.098" Dia x 0.256" L (2.50mm x 6.50mm).
Yes, the resistor is AEC-Q200 qualified.
