| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,720 pcs
|
4720 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Q200 Qualified | |
| Composition | |
| Features | |
| Lead Style | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Voltage | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Technology | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance |

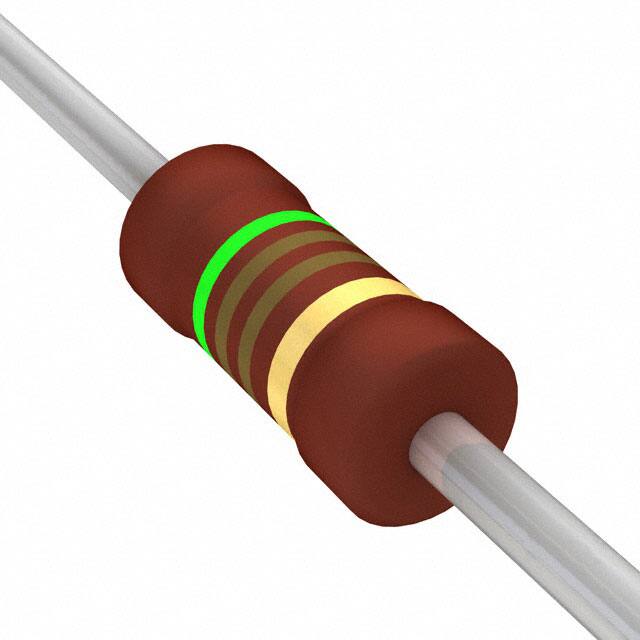

This Vishay Dale PR01000105100JR500 is a power metal film resistor designed for general purpose power applications and automotive electronics. It features a homogeneous metal alloy film deposited on a ceramic body, with tinned copper connecting wires welded to end-caps.
The resistor has a power rating of 1W and a resistance value of 510 Ohms with a tolerance of ±5%. The temperature coefficient is ±250ppm/°C. The component is housed in an axial package with dimensions of 0.098" Dia x 0.256" L (2.50mm x 6.50mm).
Key features include AEC-Q200 qualification, flameproof insulation coating meeting UL 94 V-0 requirements, and defined fusing characteristics. The encapsulation is resistant to all cleaning solvents in accordance with IEC 60068-2-45. Stability is maintained after endurance and damp heat tests, with a maximum resistance change of ±(5% R + 0.1 Ω) after 1000 hours at P70 and ±(3% R + 0.1 Ω) after a 56-day damp heat test.
This resistor meets active and passive flammability requirements as defined in IEC 60115-1. It is suitable for applications such as lighting ballasts and general power circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.01 | $0.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 510 Ohms.
The power rating is 1W.
The tolerance is ±5%.
The temperature coefficient is ±250ppm/°C.
The dimensions are 0.098" Dia x 0.256" L (2.50mm x 6.50mm).
Yes, it is AEC-Q200 qualified.
Yes, it meets active and passive flammability requirements as defined in IEC 60115-1 and has a flameproof insulation coating meeting UL 94 V-0 requirements.
