| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,045 pcs
|
3045 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Operating voltage, Umax. AC/DC | |
| Power (Watts) | |
| Power Rating (@ R < 1 Ω) | |
| Resistance | |
| Supplier Device Package | |
| Supplier Package | |
| Temperature Coefficient | |
| Tolerance |

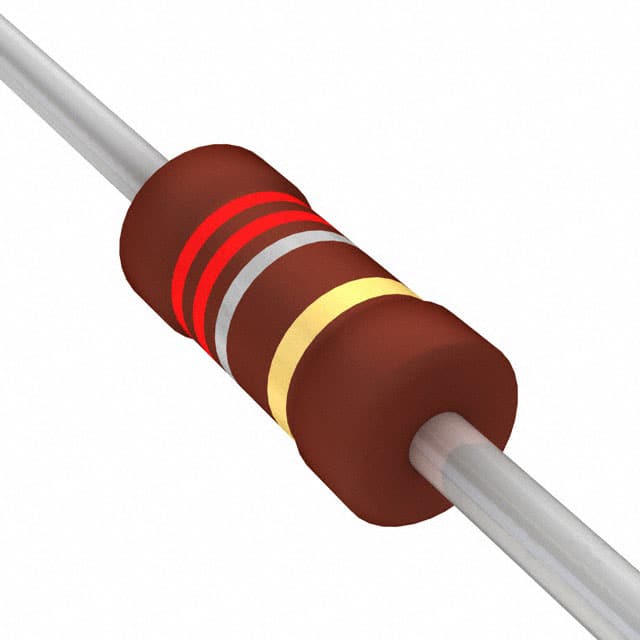

The Vishay Dale PR01000102207JA100 is a power metal film resistor designed for general-purpose power applications and automotive electronics. It features a homogeneous metal alloy film deposited on a ceramic body, with tinned copper-clad iron or electrolytic copper connecting wires. The resistor is coated with a red, non-flammable lacquer for protection.
Key specifications include a resistance of 0.22 Ohms with a tolerance of ±5%, and a power rating of 0.6W. The operating temperature range is -55°C to 155°C, with a temperature coefficient of ±250ppm/°C. The component is AEC-Q200 qualified and meets active and passive flammability requirements as defined in IEC 60115-1, with a flameproof insulation coating meeting UL 94 V-0 requirements.
The axial package measures 0.098" Dia x 0.256" L (2.50mm x 6.50mm). The encapsulation is resistant to all cleaning solvents in accordance with IEC 60068-2-45. This resistor is suitable for applications requiring defined fusing characteristics.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.01 | $0.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance is 220 mΩ.
The tolerance is ±5%.
The power rating is 0.6W.
The temperature coefficient is ±250ppm/°C.
The operating temperature range is -55°C to 155°C.
The package type is Axial.
