| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
41,000 pcs
|
41000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Resistance Tolerance | |
| Supplier Device Package | |
| Technology | |
| Temperature Coefficient | |
| Tolerance |

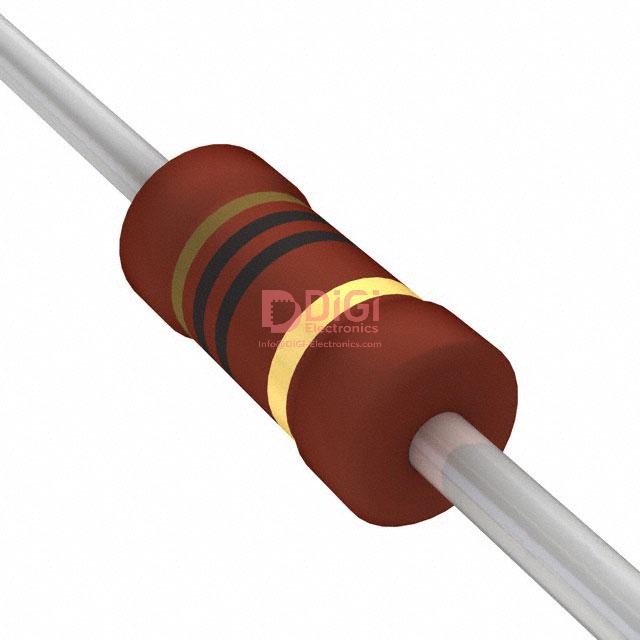

The Vishay Dale PR01000101009JA100 is a power metal film resistor designed for general purpose power applications and automotive electronics. It features a homogeneous metal alloy film deposited on a ceramic body, with tinned connecting wires. The resistor is coated with a red, non-flammable lacquer for protection.
Key electrical specifications include a resistance of 10 Ohms with a tolerance of ±5% and a power rating of 1W at 70°C. The temperature coefficient is ±250 ppm/K, and it operates within a temperature range of -55°C to 155°C. The axial package measures 0.098" Dia x 0.256" L (2.50mm x 6.50mm).
This component meets active and passive flammability requirements as defined in IEC 60115-1 and features a flameproof insulation coating that meets UL 94 V-0 requirements. It is also AEC-Q200 qualified, making it suitable for demanding automotive environments. The encapsulation is resistant to cleaning solvents per IEC 60068-2-45.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.01 | $0.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 10 Ohms.
The tolerance is ±5%.
The power rating is 1W.
The temperature coefficient is ±250 ppm/K.
The operating temperature range is -55°C to 155°C.
It uses an axial package.
Yes, it is AEC-Q200 qualified.
