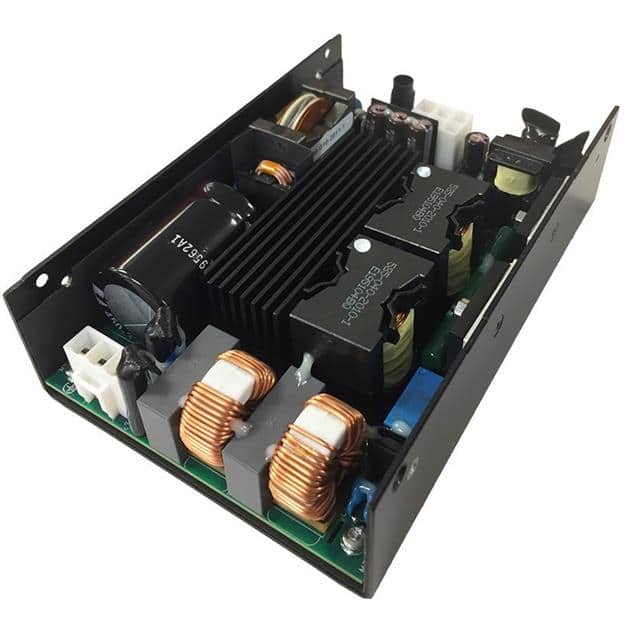

The Murata PQU650M-54P is an open frame AC/DC converter designed for high-power applications, delivering up to 653W. It operates with an efficiency of 95% and provides an output current of 12.1A.
Key features include adjustable output, load sharing, power factor correction (PFC), remote sense, and a standby output, making it versatile for various system designs. The converter has a universal input and an isolation voltage of 4 kV.
With a chassis mount type, this converter is suitable for integration into systems requiring robust power solutions. Its dimensions are 152.4mm x 101.6mm x 40.0mm. The operating temperature range is -30°C to 70°C with derating.
This model is approved by CB, CE, cTUVus, and TUV, and complies with standard 60601-1, indicating suitability for medical applications. It also meets RoHS3 compliance and has an MSL of 1.
The PQU650M-54P provides a power output of 653W.
The output current is 12.1 A.
The operating temperature range is -30°C to 70°C, with derating.
It uses chassis mount.
Key features include adjustable output, load sharing, PFC, remote sense, standby output, and universal input.
It has CB, CE, cTUVus, and TUV approvals.
Yes, it is RoHS3 Compliant.
