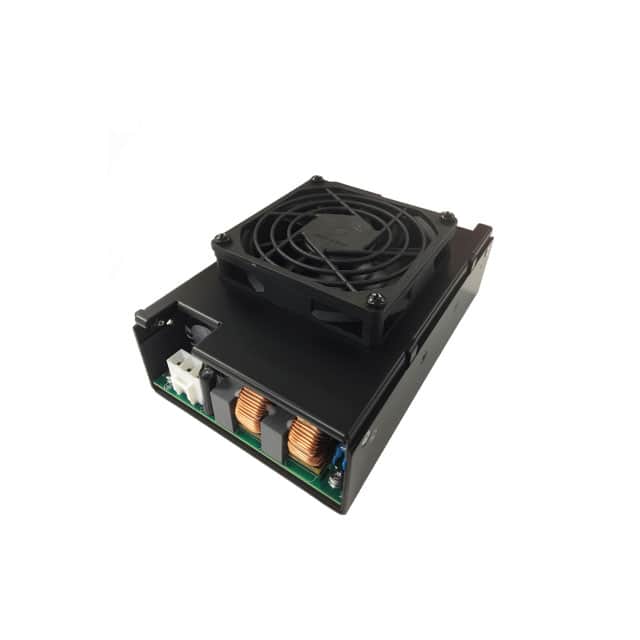

The Murata PQU650M-24P is an open frame AC DC converter designed for various applications, including medical use. It provides a single 24V output with a maximum current of 27.1A, delivering a total power of 650W.
Key electrical specifications include a wide input voltage range of 90-264 VAC and an impressive efficiency of 94%. The converter features adjustable output, load sharing, PFC, remote on/off, remote sense, and a standby output, along with universal input capability.
Mechanically, this unit is chassis mountable and measures 6.00" L x 4.00" W x 1.69" H (152.4mm x 101.6mm x 42.9mm). It operates within a temperature range of -30°C to 70°C with derating and offers 4 kV of isolation voltage.
Compliance is indicated by approvals from CB, CE, cTUVus, TUV, and UKCA, with a standard number of 60601-1. The RoHS status is RoHS3 Compliant.
The PQU650M-24P has a single output voltage of 24V.
The PQU650M-24P provides a maximum power output of 650W.
The input voltage range for the PQU650M-24P is 90 to 264 VAC.
The operating temperature range is -30°C to 70°C, with derating.
Key features include adjustable output, load sharing, PFC, remote on/off, remote sense, standby output, and universal input.
It is approved by CB, CE, cTUVus, TUV, and UKCA.
