| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

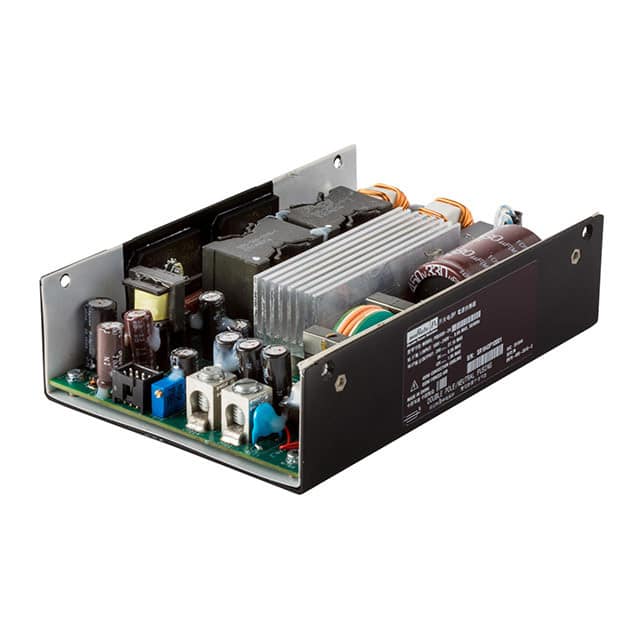

The Murata PQU650-54 is an open frame AC/DC converter designed for ITE (Commercial) and Medical applications. It delivers a robust 653W of power with an output current of 12.1A.
This converter features a chassis mount type and operates within a temperature range of -30°C to 70°C with derating. Key electrical specifications include a universal input, adjustable output, load sharing, remote sense, and a standby output. It boasts an efficiency of 95% and provides 4 kV of isolation voltage.
Designed for reliability, the PQU650-54 has received approvals from CB, CCC, cCSAus, CE, cTUVus, and TUV. Its dimensions are 152.4mm x 101.6mm x 40.0mm. The unit is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
The PQU650-54 provides a single output of 54V at 12.1A.
The PQU650-54 has a typical efficiency of 95%.
The operating temperature range is -30°C to 70°C with derating.
The dimensions are 152.4mm (length) x 101.6mm (width) x 40.0mm (height).
The PQU650-54 uses chassis mount packaging.
It is approved by CB, CCC, cCSAus, CE, cTUVus, and TUV.
It is suitable for ITE (Commercial) and Medical applications.
