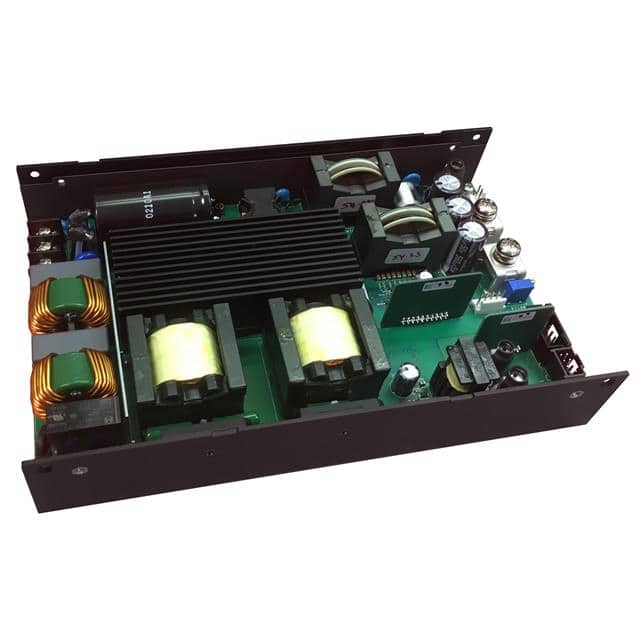

The Murata PQU1000-12 is a high-power open frame AC/DC converter designed for demanding applications. It provides a single 12V output with a maximum current of 83.3A, delivering a total of 1000W.
This converter operates with a wide input voltage range of 90-264 VAC and boasts an impressive efficiency of 95%. Key features include adjustable output, load sharing, PFC, PMBus™, remote sense, standby output, and universal input capabilities, making it versatile for various system designs.
With a chassis mount type, the PQU1000-12 is suitable for integration into industrial and medical equipment. It meets safety standards including 60601-1 and 62368-1, and is approved by agencies such as CB, CCC, CE, cCSAus, cTUVus, and TUV. The operating temperature range is -30°C to 70°C with derating.
Environmental compliance includes RoHS3 compliance. The dimensions are 8.00" L x 5.00" W x 1.57" H (203.2mm x 127.0mm x 40.0mm).
The PQU1000-12 provides a single 12V output at 83.3A.
The input voltage range is 90 to 264 VAC.
The operating temperature range is -30°C to 70°C with derating.
It complies with 60601-1 (medical) and 62368-1 (ITE) safety standards.
The typical efficiency is 95%.
It is designed for chassis mount.
Yes, it features a PMBus interface for monitoring and control.
