| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Halogen Free | |
| Height | |
| Industrial Grade | |
| Lead Style | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

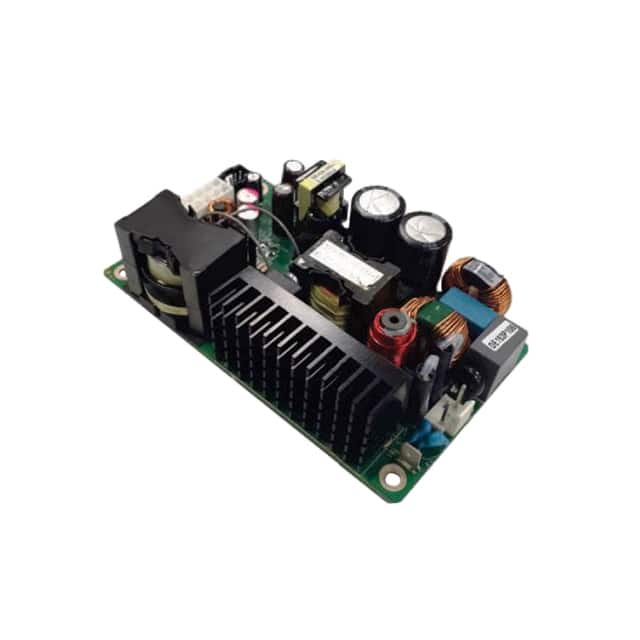

The Murata PQC250-24D is a 250W AC/DC converter designed for ITE (Commercial) and Medical applications. This open frame unit offers a 24V output and features like load sharing, power factor correction (PFC), remote sense, standby output, and universal input.
With an efficiency of 95% and an operating temperature range of -10°C to 70°C (with derating), this converter is suitable for demanding environments. Its dimensions are 127.0mm x 76.2mm x 35.1mm, making it ideal for chassis mounting.
The PQC250-24D has a voltage rating of 4 kV and a current output of 10.4 A. It is approved by CB, CCC, cCSAus, CE, and TUV, ensuring compliance with various international standards. The single output configuration simplifies integration into various systems.
95%
4kV
-10°C to 70°C with derating
1 output
127mm x 76.2mm x 35.1mm
CB, CCC, cCSAus, CE, TUV
Chassis Mount
