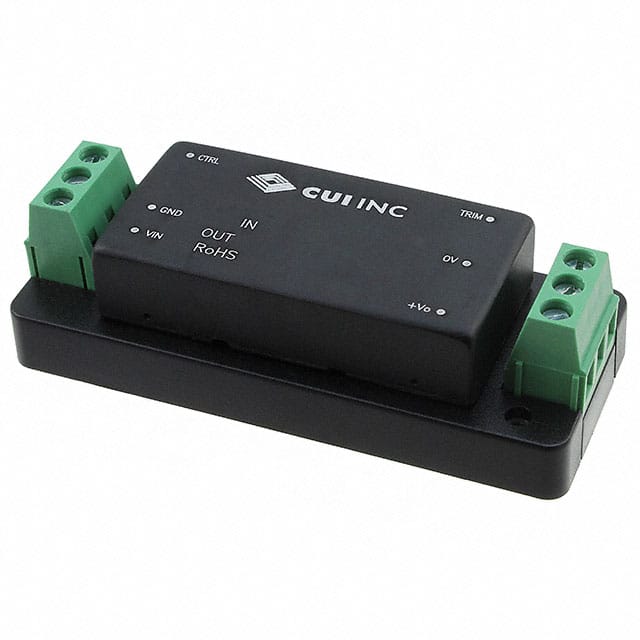

The CUI Inc. PQA50-D24-S15-T is an enclosed DC-DC converter from the PQA50-T series, designed to deliver up to 50W of isolated output power. It operates with a 15V regulated output voltage and accepts an input voltage range of 18-36 Vdc. Key electrical specifications include a maximum output current of 3.333A, an efficiency of up to 91%, and 1,500 Vdc isolation.
This converter offers robust protection features, including short circuit, over current, and input under voltage protection. It also includes inverse polarity protection and remote on/off capability. The operating temperature range is -40°C to 85°C, making it suitable for various environmental conditions. The unit is designed for chassis mounting.
With its single regulated output and compact dimensions (76.0mm x 31.5mm x 21.2mm), the PQA50-D24-S15-T is a versatile power solution for embedded systems and industrial applications requiring reliable DC-DC conversion.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 15 Vdc.
The maximum output power is 50 W.
The operating input voltage range is 18-36 Vdc.
The efficiency is up to 91%.
The operating temperature range is -40°C to 85°C.
Yes, it includes short circuit protection.
