PQ20WZ51J00H The PQ20WZ51J00H from Sharp Microelectronics is a surface mount linear voltage regulator. It offers a variable output voltage and a maximum output current of 0.5A.
Mfr Part #:

PQ20WZ51J00H

Available from 1 distributors
Mfr Name: Sharp Microelectronics
Sharp Microelectronics
The PQ20WZ51J00H from Sharp Microelectronics is a surface mount linear voltage regulator. It offers a variable output voltage and a maximum output current of 0.5A.
✓ Total Stock: 2,507 pcs
$ Price Range: $0.28

PQ20WZ51J00H Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
2,507 pcs
On Request
2507 pcs On Request 1 On Request On Request 01+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PQ20WZ51J00H Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Control Features
Current
Input Voltage
Junction Temperature
Lead Style
Mounting Type
Number of Regulators
Operating Temperature
Output Configuration
Output Current
Output Type
Output Voltage
PSRR
Power Dissipation
Protection Features
SVHC Present
Supplier Device Package
Voltage
Voltage Dropout (Max)
View Similar Products (0)

PQ20WZ51J00H Description

Short technical summary and product information.

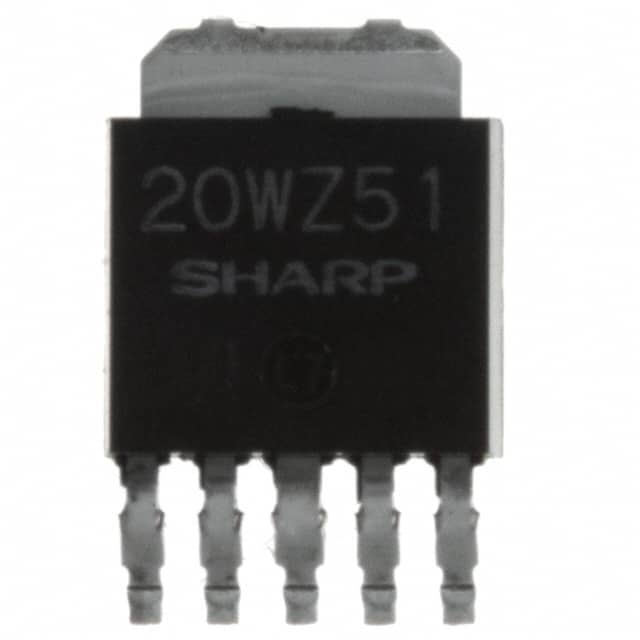

The PQ20WZ51J00H is a variable output, surface mount type, low power-loss linear voltage regulator manufactured by Sharp Microelectronics. It features a low dropout voltage of 0.5V at 300mA and can provide an output current of up to 0.5A. The device supports a variable output voltage range from 3V to 20V.



Key design features include built-in overcurrent and overheat protection functions, a low dissipation current at the OFF-state (maximum 5μA), and an ON/OFF control function. The regulator operates within an ambient temperature range of -20°C to +80°C and has a junction temperature rating of 150°C. Its package type is TO-252-6, DPak (5 Leads + Tab), suitable for surface mounting.



Applications for this voltage regulator include personal computers, CD-ROM drives, and power supplies for various OA equipment. The lead finish is lead-free solder plating (Sn2Cu composition).

PQ20WZ51J00H Quick Information

Product Type: Voltage Regulator
Canonical Name: PQ20WZ51J00H Variable Output Low Power-Loss Voltage Regulator

PQ20WZ51J00H Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

PQ20WZ51J00H Estimated Pricing

Qty Low High
1+ $0.28 $0.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

PQ20WZ51J00H Features

  • Variable output voltage from 3V to 20V.
  • Maximum output current of 0.5A.
  • Low dropout voltage of 0.5V at 300mA.
  • Built-in overcurrent and overheat protection.
  • Surface mountable SC-63 package.

PQ20WZ51J00H Applications

  • Used in power supply regulation circuits.
  • Suitable for battery-powered equipment.
  • Ideal for post-regulation of DC-DC converters.
  • Applicable in industrial control systems.

PQ20WZ51J00H FAQs

6 frequently asked questions generated from this part’s specifications.
What is the output voltage range for the PQ20WZ51J00H?

The output voltage can be adjusted from 3V to 20V.

What is the maximum output current of the PQ20WZ51J00H?

The maximum output current is 0.5A.

What is the dropout voltage for the PQ20WZ51J00H?

The dropout voltage is a maximum of 0.5V at 300mA.

What protection features are included in the PQ20WZ51J00H?

It includes overcurrent and overtemperature protection.

What is the operating temperature range?

The operating temperature range is -20°C to +80°C.

What package type is the PQ20WZ51J00H supplied in?

It is supplied in a TO-252-6, DPak (5 Leads + Tab) package, also referred to as SC-63.
