| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,276 pcs
|
2276 pcs | On Request | 1 | On Request | On Request | 07+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Control Features | |
| Current | |
| Mounting Type | |
| Number of Regulators | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| PSRR | |
| Protection Features | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage | |
| Voltage Dropout (Max) |

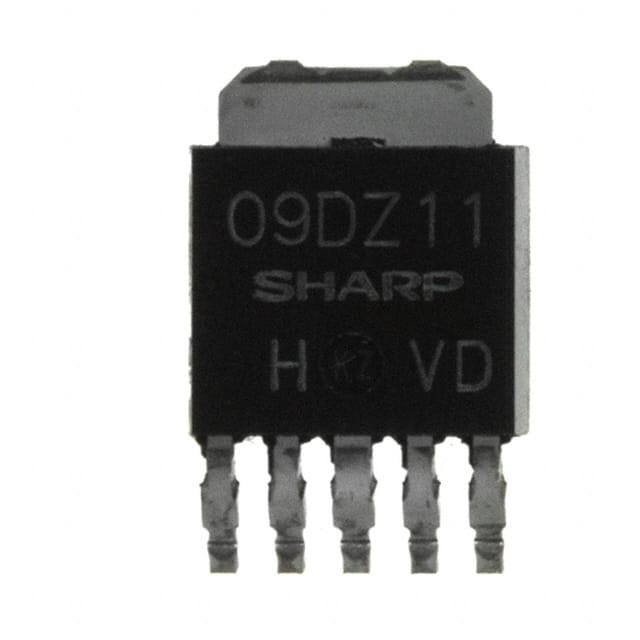

The PQ09DZ1UJ00H from Sharp Microelectronics is a surface-mount linear voltage regulator designed for applications requiring a stable 9V output. It can deliver up to 1A of current with a low dropout voltage of 0.5V at 500mA, making it efficient for power management.
This device is housed in an SC-63 package, suitable for automated assembly processes. Key features include overcurrent protection, overheat protection, and an ON/OFF control function for power saving. The regulator operates within a temperature range of -20°C to 80°C.
Applications for this voltage regulator include personal computers, CD-ROM drivers, and power supplies for various OA equipment. Its robust protection features and reliable performance make it a suitable choice for embedded systems and consumer electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $23.40 | $23.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 9V.
The maximum output current is 1A.
The dropout voltage is a maximum of 0.5V at 500mA.
It includes overcurrent and overheat protection.
The operating temperature range is -20°C to 80°C.
Yes, it is RoHS3 Compliant.
