| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
796 pcs
|
796 pcs | On Request | 1 | On Request | On Request | 10+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Control Features | |
| Current | |
| Input Voltage | |
| Junction Temperature | |
| Mounting Type | |
| Number of Regulators | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| PSRR | |
| Power Dissipation | |
| Protection Features | |
| Quiescent Current | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage | |
| Voltage Dropout (Max) |

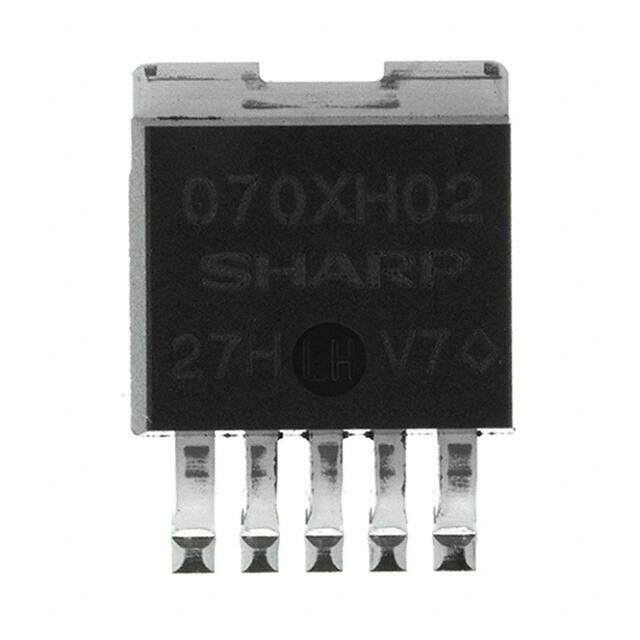

The Sharp Microelectronics PQ070XH02ZPH is a low voltage operation, low power-loss linear voltage regulator designed for various electronic applications. It offers an output current of 2A and features built-in overcurrent and overheat protection functions.
This regulator operates with a minimum input voltage of 2.35V and provides an adjustable output voltage. Key electrical characteristics include a low dropout voltage of 0.5V at 2A, a PSRR of 60dB at 120Hz, and low dissipation current. The device is suitable for peripheral equipment of personal computers and power supplies for devices such as DVD players or set-top boxes.
The PQ070XH02ZPH comes in a TO-263 package, designed for surface mounting. It operates within a temperature range of -40°C to 85°C, with a junction temperature limit of 150°C. The lead finish is lead-free solder plating.
| Qty | Low | High |
|---|---|---|
| 1+ | $23.40 | $23.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The minimum operating voltage for the PQ070XH02ZPH is 2.35V.
The PQ070XH02ZPH can provide a maximum output current of 2A.
The dropout voltage for the PQ070XH02ZPH is 0.5V at an output current of 2A.
The operating temperature range for the PQ070XH02ZPH is -40°C to 85°C.
The PQ070XH02ZPH is supplied in a TO-263 package.
