| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,050 pcs
|
3050 pcs | On Request | 1 | On Request | On Request | 04+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Control Features | |
| Current | |
| Input Voltage | |
| Junction Temperature | |
| Lead Style | |
| Mounting Type | |
| Number of Regulators | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Output Voltage | |
| PSRR | |
| Protection Features | |
| Quiescent Current | |
| Storage Temperature | |
| Supplier Device Package | |
| Voltage | |
| Voltage Dropout (Max) |

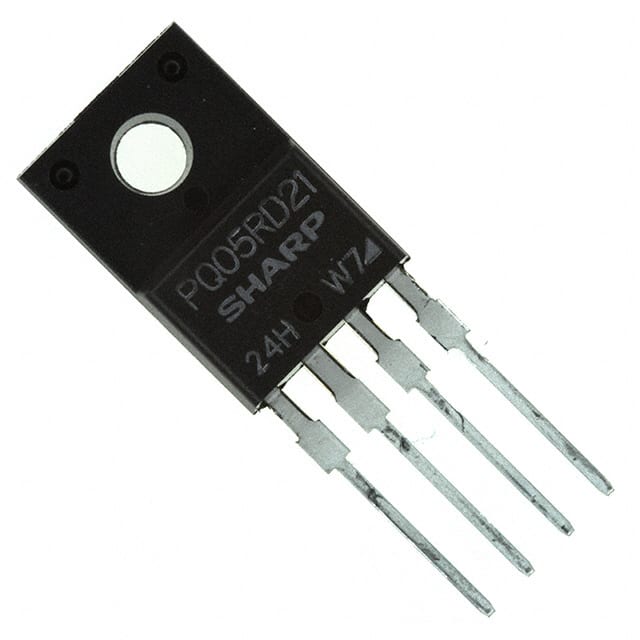

The Sharp Microelectronics PQ05RD21J00H is a low power-loss linear voltage regulator designed for various electronic equipment power supplies. It provides a fixed 5.0V output voltage with a maximum output current of 2.0A. The device features a low dropout voltage of 0.5V at 2.0A, contributing to its efficiency.
Key electrical characteristics include a maximum input voltage of 20V, a quiescent current of 10 mA, and a ripple rejection of 55dB at 120Hz. For protection, it incorporates overcurrent and overheat protection circuits, along with an ASO protection circuit. The operating temperature range is -20°C to 80°C.
Packaged in a compact resin package equivalent to TO-220, the PQ05RD21J00H is suitable for through-hole mounting. It also includes an ON/OFF control function for added design flexibility. This regulator is well-suited for applications in AV and OA equipment where stable power is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is fixed at 5.0V.
The maximum output current is 2A.
The dropout voltage is 0.5V maximum at 2A output current.
The maximum input voltage is 20V.
The operating temperature range is -20°C to 80°C.
It comes in a TO-220-4 through-hole package.
Yes, it has an ON/OFF control terminal with ON threshold of 2.0V minimum and OFF threshold of 0.8V maximum.
