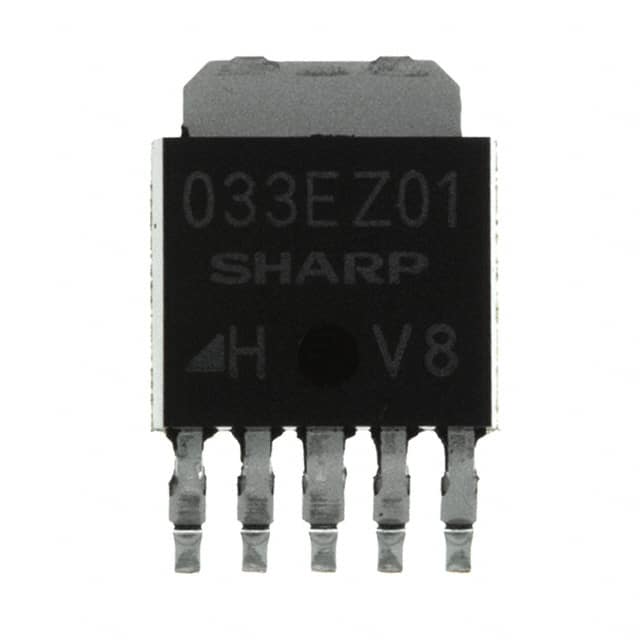

PQ033EZ01ZPH The Sharp Microelectronics PQ033EZ01ZPH is a linear voltage regulator IC providing a fixed 3.3V output at up to 1A. It features a low dropout voltage and is available in a surface-mount SC-63 package.
Mfr Part #:

PQ033EZ01ZPH

Available from 1 distributors
Mfr Name: Sharp Microelectronics
Sharp Microelectronics
The Sharp Microelectronics PQ033EZ01ZPH is a linear voltage regulator IC providing a fixed 3.3V output at up to 1A. It features a low dropout voltage and is available in a surface-mount SC-63 package.
✓ Total Stock: 2,542 pcs
$ Price Range: $23.40

PQ033EZ01ZPH Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
2,542 pcs
On Request
2542 pcs On Request 1 On Request On Request 13+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PQ033EZ01ZPH Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Control Features
Current
Junction Temperature
Mounting Type
Number of Regulators
Operating Temperature
Output Configuration
Output Type
Output Voltage
PSRR
Protection Features
Storage Temperature
Supplier Device Package
Voltage
Voltage Dropout (Max)
View Similar Products (0)

PQ033EZ01ZPH Description

Short technical summary and product information.

The Sharp Microelectronics PQ033EZ01ZPH is a compact, surface-mount linear voltage regulator designed for low power loss applications. It provides a stable 3.3V output voltage with a maximum output current of 1A. The device boasts a low dropout voltage of 0.5V at 500mA, making it efficient for power-sensitive designs.



Key electrical characteristics include a high PSRR of 60dB at 120Hz and built-in overcurrent and over-temperature protection features. The regulator operates within a temperature range of -40°C to 85°C and features an Enable control function.



Packaged in an SC-63 (TO-252-6) surface-mount case, the PQ033EZ01ZPH is suitable for various electronic equipment power supplies. Its lead finish is lead-free solder plating, and it complies with RoHS3 directives. The low dissipation current at no load (2mA max) and output OFF-state current (5μA max) further enhance its suitability for power-conscious applications.



This voltage regulator is ideal for peripheral equipment of personal computers and power supplies for various electronic devices such as DVD players or set-top boxes.

PQ033EZ01ZPH Quick Information

Product Type: Linear Voltage Regulator
Canonical Name: PQ033EZ01ZPH Linear Voltage Regulator
Subcategory: Linear

PQ033EZ01ZPH Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead-free solder plating (Composition: Sn2Cu)

PQ033EZ01ZPH Estimated Pricing

Qty Low High
1+ $23.40 $23.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

PQ033EZ01ZPH Features

  • Provides stable 3.3V output voltage.
  • Maximum output current of 1A.
  • Low 0.5V dropout voltage at 500mA.
  • Surface-mount SC-63 package.
  • Includes overcurrent and overtemperature protection.

PQ033EZ01ZPH Applications

  • Power supply for portable electronic devices.
  • Voltage regulation in consumer electronics.
  • Low power power management circuits.
  • Embedded systems requiring stable 3.3V output.
  • Powering peripherals in compact equipment.

PQ033EZ01ZPH FAQs

6 frequently asked questions generated from this part’s specifications.
What is the output voltage of the PQ033EZ01ZPH?

The output voltage is 3.3V.

What is the maximum output current for the PQ033EZ01ZPH?

The maximum output current is 1A.

What is the dropout voltage of this linear regulator?

The dropout voltage is 0.5V at 500mA.

What type of package is the PQ033EZ01ZPH in?

It is available in an SC-63 package, also known as TO-252-6, DPak (5 Leads + Tab).

What is the operating temperature range for the PQ033EZ01ZPH?

The operating temperature range is -40°C to 85°C.

Does the PQ033EZ01ZPH have overcurrent protection?

Yes, it includes overcurrent protection.
