| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
433 pcs
|
433 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

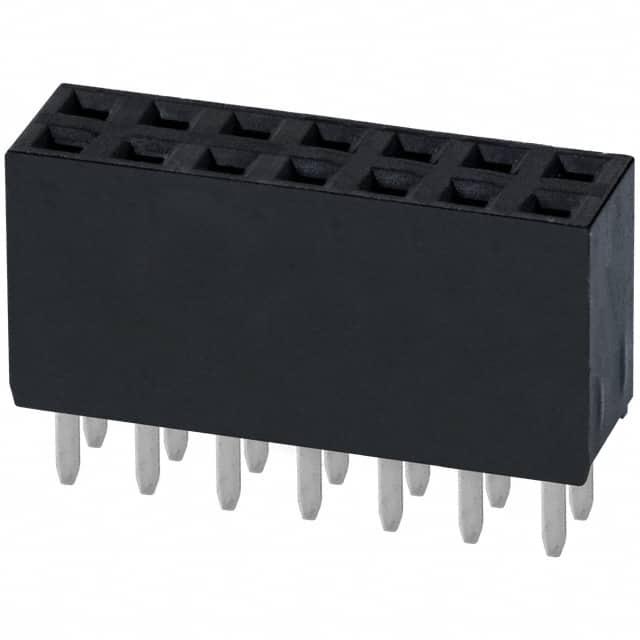

This 14 position female header from Sullins Connector Solutions is designed for board-to-board applications. It features a 2.54mm pitch and 2.54mm row spacing, with all positions loaded. The connector uses a push-pull fastening mechanism and is mounted via through hole with solder termination. Electrical ratings include 3A current and 250V voltage. The operating temperature range is -40°C to 105°C. The insulator is made of polyester (PBT) with a UL94 V-0 flammability rating. Contacts are phosphor bronze with a tin finish. This header is suitable for use in a variety of electronic assemblies requiring a reliable 14-pin interconnection.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.97 | $0.97 |
| 10+ | $0.82 | $0.82 |
| 100+ | $0.70 | $0.70 |
| 500+ | $0.62 | $0.62 |
| 1,000+ | $0.59 | $0.59 |
| 5,000+ | $0.53 | $0.53 |
| 10,000+ | $0.51 | $0.51 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
14 positions, all loaded, in 2 rows.
2.54mm (0.100") pitch and row spacing.
3A per contact.
250V.
Through hole with solder termination.
-40°C to 105°C.
Tin overall.
