| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
112 pcs
|
112 pcs | On Request | 1 | On Request | On Request | 1921+ | On Request | On Request | |
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Termination | |
| Voltage Rating |

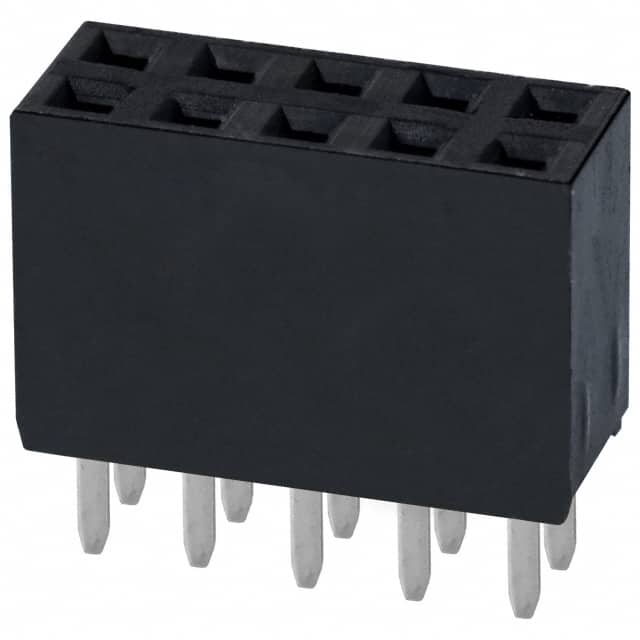

This Sullins Connector Solutions PPTC052LFBN-RC is a female header component designed for robust interconnectivity. It offers 10 positions arranged in two rows, with a standard pitch of 0.100 inches (2.54 mm). The header is suitable for board-to-board applications and features tin-plated contacts for reliable conductivity and solderability.
The component has a through-hole mounting type, simplifying integration into PCBs. It is rated for a current of 3 Amps and a voltage of 250V. The operating temperature range is from -40°C to 105°C, and the insulator material has a UL94 V-0 flammability rating, ensuring safety in various environments. The insulation height is 8.51mm (0.335").
With a fastening type of Push-Pull, this header is designed for durability and repeated mating cycles. Its compact footprint is beneficial for dense electronic layouts. The RoHS status is listed as RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch of the PPTC052LFBN-RC header is 0.100 inches (2.54mm).
The current rating for the PPTC052LFBN-RC connector is 3 Amps.
The PPTC052LFBN-RC header uses a Through Hole mounting type.
The operating temperature range for the PPTC052LFBN-RC header is -40°C to 105°C.
The PPTC052LFBN-RC header has 10 positions.
The contact finish on the PPTC052LFBN-RC header is Tin.
