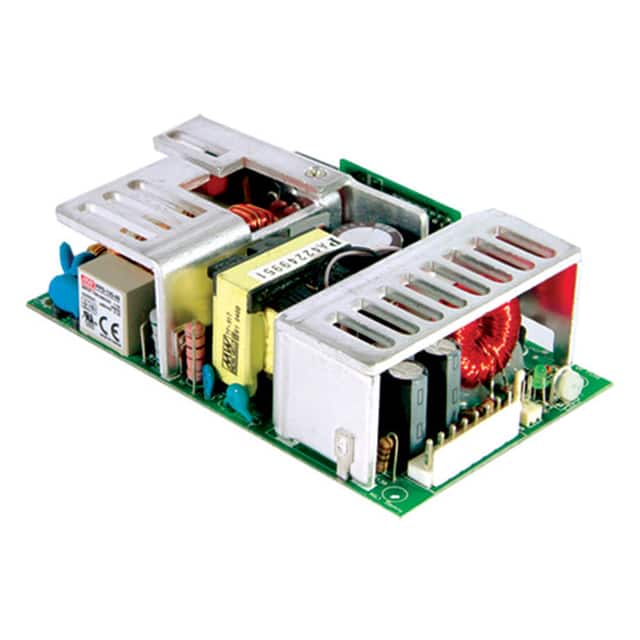

This Mean Well PPT-125D is a versatile AC DC converter designed for various applications. It delivers up to 101W of power with a primary output voltage of 24V dc and a maximum output current of 7A. The unit accepts a universal input voltage range from 90V ac to 264V ac, making it suitable for global use.
Key electrical specifications include an efficiency of 78% and power factor correction (PFC) to EN 61000-3-2. It features three distinct outputs and an adjustable output voltage capability. The operating temperature range is -20°C to 70°C with derating.
Mechanically, the converter is designed for chassis mounting and has dimensions of 127.0mm x 76.2mm x 34.6mm. It complies with numerous safety and EMC standards, including UL 62368-1 and EN 55022 Class B. The product also includes features such as remote sense, a power on LED indicator, and protections against short circuit, overload, and overvoltage.
The Mean Well PPT-125D has a 24V dc output voltage.
The maximum output current is 7A.
The power rating is 101W.
The input voltage range is 90V ac to 264V ac.
The operating temperature range is -20°C to 70°C with derating.
It is designed for chassis mounting.
