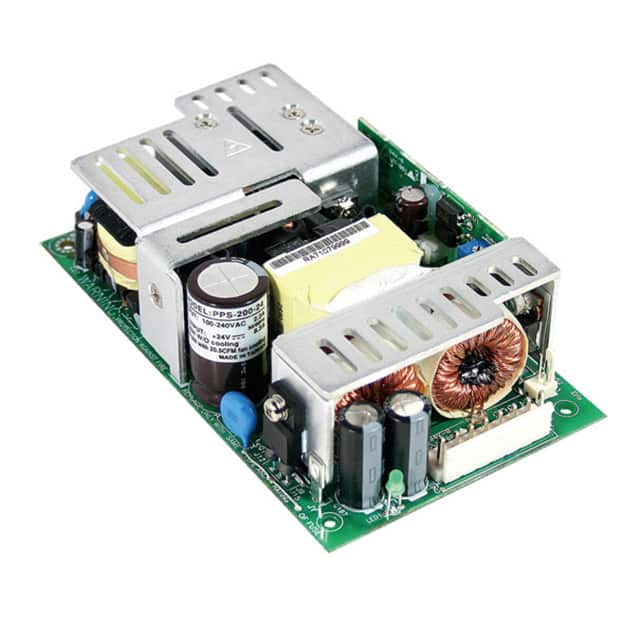

The Mean Well PPS-200-24 is a 24V, 150W AC/DC converter from the PPS-200 series. This open frame power supply is designed for chassis mounting and accepts a universal AC input range of 90-264VAC.
Key electrical specifications include a rated output current of 8.3A and a rated power of 150W under convection cooling, which can be increased to 199.2W with forced air (20.5 CFM fan). It boasts a typical efficiency of 89% and features adjustable output voltage within a range of 21.6 to 26.4V. The unit includes built-in active PFC, remote sense, and protection features such as overload, over-voltage, and over-temperature protection.
With dimensions of 127mm x 76.2mm x 35.1mm, this power supply operates within a wide temperature range of -20°C to +70°C. It meets safety standards including UL60950-1 and TUV EN60950-1, and complies with EMC standards like EN55032 Class B. The PPS-200-24 is suitable for ITE (Commercial) applications.
The nominal DC output voltage for the PPS-200-24 is 24V.
The rated current for the PPS-200-24 is 8.3A under convection cooling.
The rated power is 150W with convection cooling and 199.2W with a 20.5 CFM fan.
The input voltage range is 90-264VAC or 127-370VDC.
The operating temperature range is -20°C to +70°C.
The dimensions are 127mm x 76.2mm x 35.1mm.
It meets UL60950-1 and TUV EN60950-1 safety standards.
