| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,876 pcs
|
1876 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Storage Temperature | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

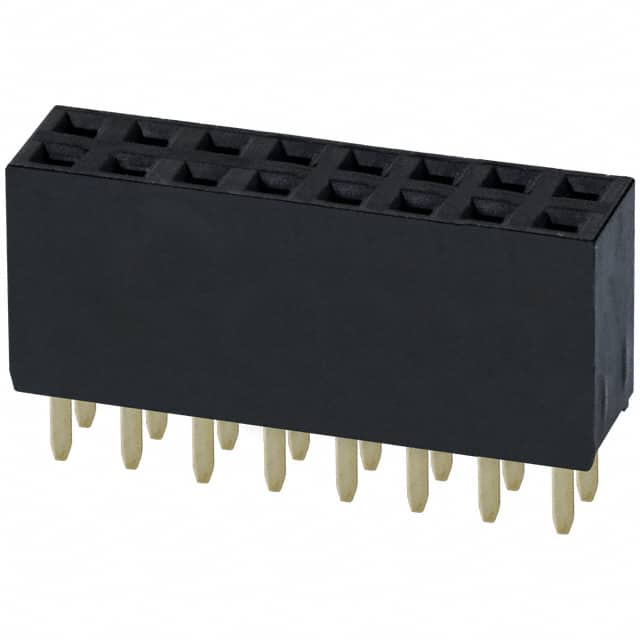

The Sullins Connector Solutions PPPC082LFBN-RC is a female header designed for board-to-board connections. It features 16 positions arranged in 2 rows, with a standard pitch of 2.54mm (0.100 inches).
This header has a current rating of 3A and a voltage rating of 250V. The contact material is Phosphor Bronze with a gold flash finish, ensuring reliable conductivity. The insulator material is PBT or Nylon, and it carries a UL94 V-0 flammability rating.
Designed for through-hole mounting, this connector utilizes a push-pull fastening type. The operating temperature range is from -40°C to 105°C. The insulation height is 8.51mm, and the contact length is 3.20mm.
This component is suitable for applications requiring a robust and reliable interconnect solution between printed circuit boards.
The current rating is 3A.
The voltage rating is 250V.
It has 16 positions, with all positions loaded.
The pitch is 2.54mm (0.100").
It uses through hole mounting.
The operating temperature range is -40°C to 105°C.
The insulator material is PBT or Nylon.
