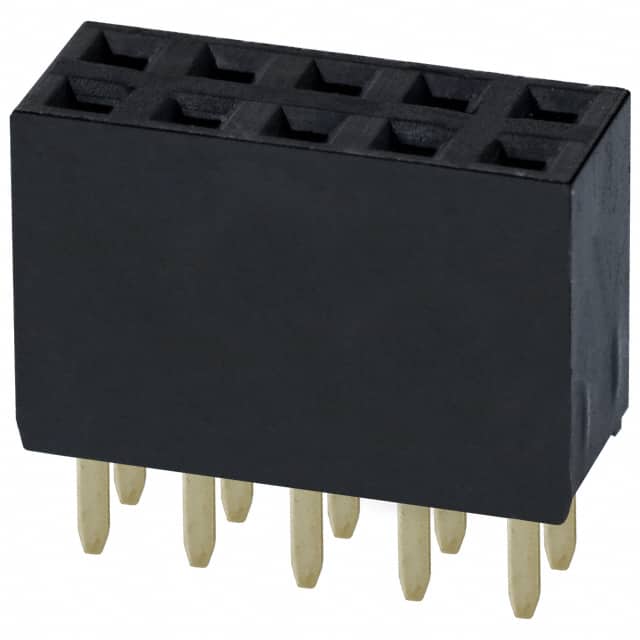

PPPC052LFBN-RC PPPC052LFBN-RC is a 10 position, 2 row female header from Sullins Connector Solutions. It features 2.54mm pitch, through hole mounting, and gold flash contacts.
Mfr Part #:

PPPC052LFBN-RC

Available from 2 distributors
Mfr Name: Sullins Connector Solutions
Sullins Connector Solutions
PPPC052LFBN-RC is a 10 position, 2 row female header from Sullins Connector Solutions. It features 2.54mm pitch, through hole mounting, and gold flash contacts.
✓ Total Stock: 10 pcs
$ Price Range: $0.36 - $0.68

PPPC052LFBN-RC Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Trace Tec ✓
Non-Authorised Inventory information
9 pcs
On Request
9 pcs On Request 1 On Request On Request On Request On Request On Request
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PPPC052LFBN-RC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Type
Current Rating (Amps)
Fastening Type
Insulation Color
Insulation Height
Insulator Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Style
Termination
Termination Style
Voltage Rating
View Similar Products (0)

PPPC052LFBN-RC Description

Short technical summary and product information.

PPPC052LFBN-RC is a 10 position female header (receptacle) designed for board-to-board interconnects. It has 2 rows with 2.54mm pitch and row spacing, terminated via through hole soldering. The insulator is made of PBT/Nylon with a black color and UL94 V-0 flammability rating.



The contacts are made of phosphor bronze with a gold flash finish, rated at 3A current and 250V voltage. The operating temperature range covers -40°C to 105°C. This connector features a push-pull fastening type and has a 8.51mm insulation height with a 3.20mm contact length.



This part is suitable for PCB applications requiring a reliable, moderate-density connector. The gold flash provides adequate corrosion resistance for many environments.

PPPC052LFBN-RC Quick Information

Product Type: Female Header
Series: PPPC
Canonical Name: Sullins Connector Solutions PPPC052LFBN-RC 10 Position 2.54mm Pitch Through Hole Female Header
Subcategory: Female Socket Header

PPPC052LFBN-RC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): MSL 1 Unlimited
REACH Status: REACH Unaffected

PPPC052LFBN-RC Estimated Pricing

Qty Low High
1+ $0.68 $0.68
10+ $0.58 $0.58
100+ $0.49 $0.49
500+ $0.44 $0.44
1,000+ $0.42 $0.42
5,000+ $0.37 $0.37
10,000+ $0.36 $0.36

Estimated market price range - modelled values for guidance only, not live distributor offers.

PPPC052LFBN-RC Features

  • 10 position dual row female header.
  • 2.54mm pitch and row spacing.
  • Rated for 3A at 250V.
  • Gold flash contact finish.
  • UL94 V-0 rated insulator.

PPPC052LFBN-RC Applications

  • Board-to-board interconnects.
  • PCB stacking and expansion.
  • Industrial control modules.
  • Consumer electronics wiring.

PPPC052LFBN-RC FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does PPPC052LFBN-RC have?

10 positions.

What is the pitch of PPPC052LFBN-RC?

2.54mm (0.100").

What is the current rating of PPPC052LFBN-RC?

3A.

What is the voltage rating of PPPC052LFBN-RC?

250V.

What is the mounting type?

Through hole with solder termination.

What is the operating temperature range?

-40°C to 105°C.
