| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Termination | |
| Voltage Rating |

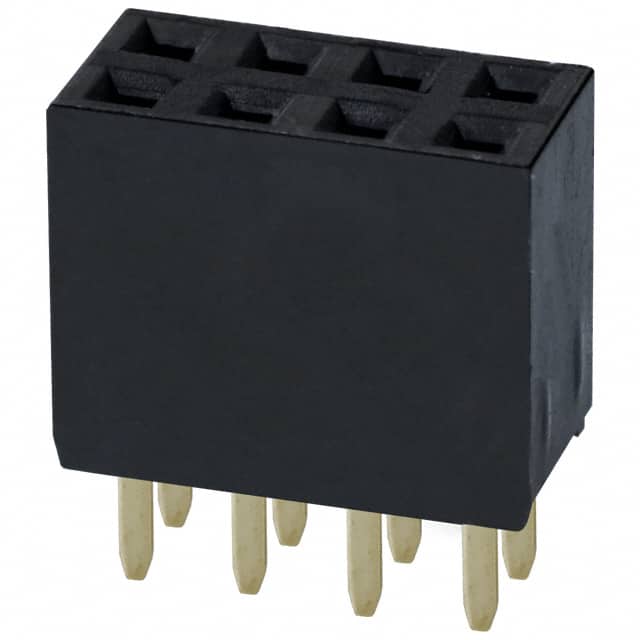

The Sullins Connector Solutions PPPC042LFBN-RC is a dual row 8-position female header with 2.54mm (0.100 inch) contact centers. It features a through hole solder termination and a push-pull fastening type, suitable for board-to-board applications. The insulator is made of polyester (PBT) with a black color and a UL94 V-0 flammability rating. Contacts are phosphor bronze with gold flash finish, ensuring reliable conductivity and corrosion resistance. This header is rated for 3A current and 250V voltage, and operates over a temperature range of -40°C to 105°C. It is RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.66 | $0.66 |
| 10+ | $0.56 | $0.56 |
| 100+ | $0.48 | $0.48 |
| 500+ | $0.42 | $0.42 |
| 1,000+ | $0.40 | $0.40 |
| 5,000+ | $0.36 | $0.36 |
| 10,000+ | $0.35 | $0.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions arranged in 2 rows.
2.54mm (0.100 inches).
3A.
250V.
Through hole with solder termination.
-40°C to 105°C.
Polyester (PBT) with UL94 V-0 flammability rating.
