| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Insulation Resistance | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Weight | |
| Width |

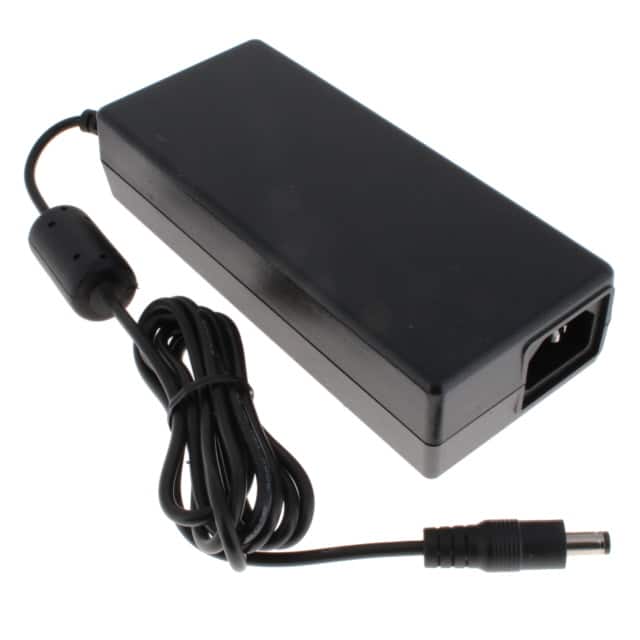

The Phihong USA PPL90U-560 is a 90W AC/DC desktop adapter designed for various applications, including ITE (Commercial). It features a 56V DC output voltage and a maximum output current suitable for its power rating.
This adapter complies with DOE Level VI efficiency standards and the ErP/Ecodesign Directive 2009/125/EC – Regulation EU 2019/1782, as well as EU CoC Tier 2. It includes over-voltage, short-circuit, and over-current protection for enhanced safety. The input connector is an IEC 320-C14, and the output is delivered via a 2.1mm x 5.5mm x 10.0mm barrel plug with a positive center pin.
With an input voltage range of 90 to 264VAC and a frequency of 47 to 63Hz, this adapter is suitable for international use. It operates within a temperature range of 0°C to 40°C and has dimensions of 151.0mm x 64.0mm x 36.0mm. The adapter is designed as a non-vented/spill-proof case and meets Class B EMI standards.
90 to 264 VAC.
56V DC, 90W.
Level VI and CoC Tier 2.
Over-voltage (150% max), over-current (170% max), short circuit auto-recovery.
0°C to +40°C.
151.0mm x 64.0mm x 36.0mm, 580g.
cULus and IEC 62368-1.
