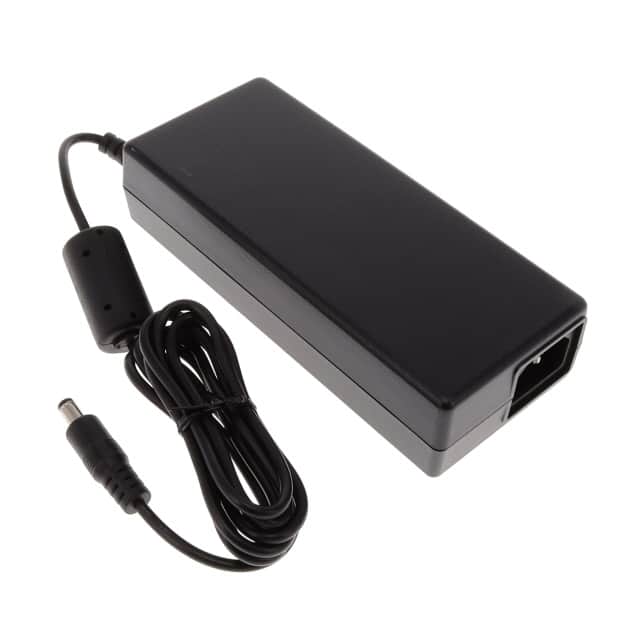

The Phihong USA PPL90U-240 is a 90W AC/DC desktop power adapter designed for reliable power delivery in commercial and ITE applications. It features a 24V DC output with a maximum current of 3.75A, providing a total of 90W of power.
This adapter complies with DOE Level VI and ErP/Ecodesign Directive 2009/125/EC – Regulation EU 2019/1782, ensuring high energy efficiency. It operates within a wide AC input voltage range of 90 to 264VAC and features an IEC 320-C14 input connector. The output is delivered via a standard 2.1mm x 5.5mm barrel plug with a positive center pin.
Key features include over-voltage, short-circuit, and over-current protection for enhanced safety. The adapter operates in a temperature range of 0°C to 40°C and has a non-vented, spill-proof case. Its compact desktop form factor (Class I) makes it suitable for various integration needs.
The PPL90U-240 adapter has an output voltage of 24V.
The maximum output current for the PPL90U-240 is 3.75A.
The PPL90U-240 adapter has a power rating of 90W.
The PPL90U-240 adapter operates within a temperature range of 0°C to 40°C.
Yes, the PPL90U-240 meets DOE Level VI and CoC Tier 2 efficiency standards.
The PPL90U-240 uses an IEC 320-C14 input connector.
The output connector is a Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm.
