| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Insulation Resistance | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Weight | |
| Width |

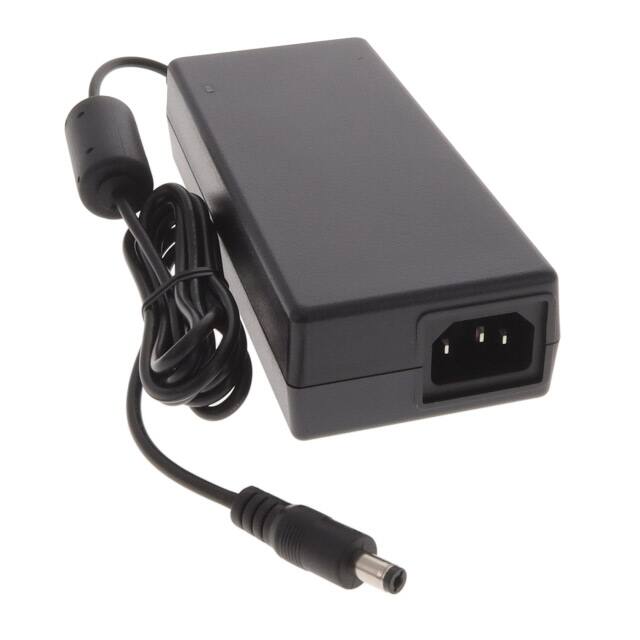

The Phihong USA PPL90U-180 is a versatile 90W AC/DC desktop adapter designed for various applications, including networking, peripherals, and consumer electronics. It delivers a stable 18V DC output at a maximum current of 5A.
This adapter complies with stringent efficiency standards, including DOE Level VI and ErP/Ecodesign Directive 2009/125/EC – Regulation EU 2019/1782, and is EU CoC Tier 2 compliant. It offers essential protections such as over-voltage, short-circuit, and over-current protection.
Featuring an IEC 320-C14 input connector and a 2.1mm x 5.5mm x 10.0mm DC output with a positive center pin, the PPL90U-180 is suitable for a wide range of devices. Its dimensions are 151mm x 64mm x 36mm, and it operates within a temperature range of 0°C to 40°C. The adapter also meets Class B EMI standards.
The PPL90U-180 adapter provides an 18.0V DC output voltage.
The maximum output current for the PPL90U-180 is 5.0A.
The PPL90U-180 adapter has a power rating of 90.0W.
The adapter operates within a temperature range of 0°C to +40°C.
Yes, it is compliant with DOE Level VI Efficiency and EU CoC Tier 2.
The adapter uses an IEC 320-C14 input connector.
The dimensions are 151mm x 64mm x 36mm.
