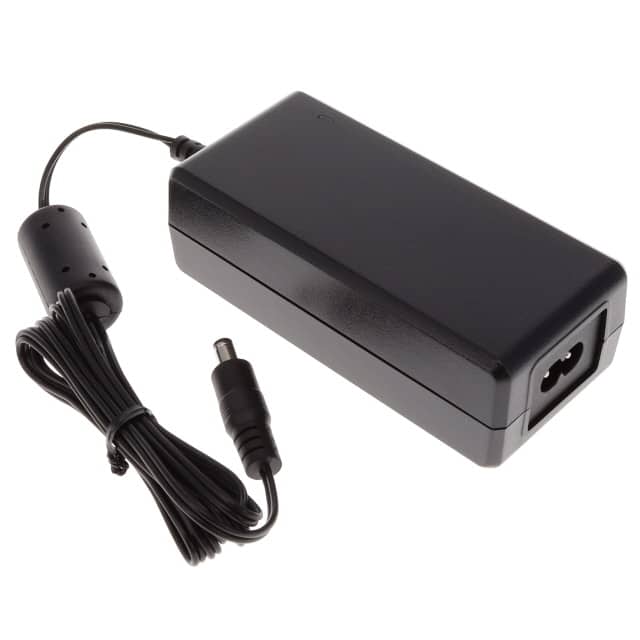

The Phihong USA PPL65W-560 is a versatile AC/DC desktop adapter designed for various applications, including networking, peripherals, and consumer electronics. It delivers a stable 56V DC output with a maximum power of 66W.
This adapter series complies with stringent efficiency regulations, including DOE Level VI and ErP/Ecodesign Directive 2009/125/EC – Regulation EU 2019/1782, and EU CoC Tier 2. It offers essential protection features such as over-voltage, short-circuit, and over-current protection. The unit operates within a wide AC input voltage range of 90 to 264VAC and features a standard IEC 320-C8 input connector.
Designed for reliability, the PPL65W-560 has a non-vented, spill-proof case and operates within an ambient temperature range of 0°C to 40°C. Its compact dimensions (115mm x 53mm x 38mm) make it suitable for space-constrained environments. The output is delivered via a standard 2.1mm x 5.5mm x 10.0mm barrel plug with a positive center pin.
The PPL65W-560 adapter provides a 56V DC output.
The maximum power output is 66W.
The PPL65W-560 meets DOE Level VI and EU CoC Tier 2 efficiency standards.
The operating temperature range is 0°C to 40°C.
It uses an IEC 320-C8 input connector.
The dimensions are 115mm x 53mm x 38mm.
