| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Insulation Resistance | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Weight | |
| Width |

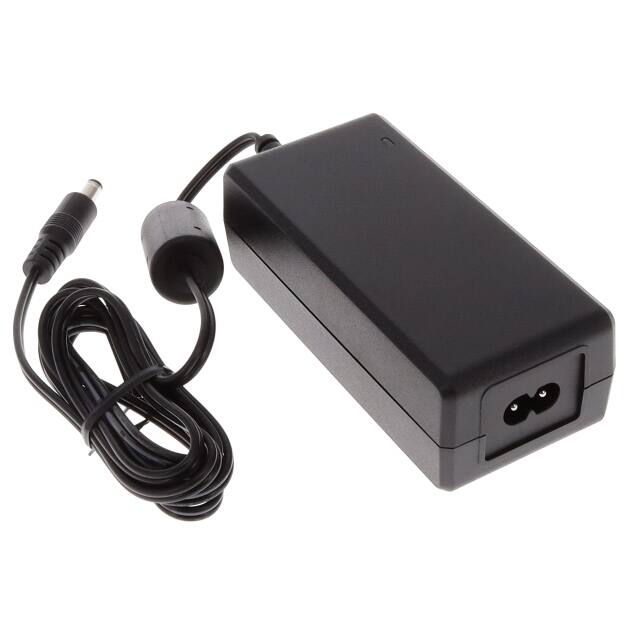

The Phihong USA PPL65W-240 is a 65W AC/DC desktop power adapter designed for commercial ITE applications. It provides a stable 24V DC output with a maximum current of 2.71A.
This adapter operates with a wide AC input voltage range of 90 to 264VAC and a frequency of 47 to 63Hz. It meets DOE Level VI and EU CoC Tier 2 efficiency standards, ensuring energy savings with a typical average efficiency of 88.0% at 115VAC and 230VAC. The no-load power consumption is kept below 0.150W.
Key features include over-voltage, short-circuit, and over-current protection for enhanced safety. The adapter has a non-vented, spill-proof case and meets Class B EMI emissions standards (FCC Part 15, EN 55032). It is approved by cULus and IEC, adhering to the IEC 62368-1 standard.
The PPL65W-240 has a compact desktop form factor with dimensions of 115mm x 53mm x 38mm. It utilizes an IEC 320-C8 input connector and a 2.1mm x 5.5mm x 10.0mm barrel plug output connector with a positive center pin. The integrated DC cable is 1500mm long and 16 AWG.
The PPL65W-240 adapter has a DC output voltage of 24V.
The maximum output current for the PPL65W-240 is 2.71A.
The PPL65W-240 has an output power rating of 65W.
The adapter accepts an AC input voltage range of 90 to 264VAC.
The PPL65W-240 operates within a temperature range of 0°C to +40°C.
Yes, it is compliant with DOE Level VI and EU CoC Tier 2 efficiency regulations.
It complies with cULus and IEC standards, specifically IEC 62368-1.
