| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cable Length | |
| Cord Length | |
| Current | |
| Efficiency | |
| Features | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Insulation Resistance | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Weight | |
| Width |

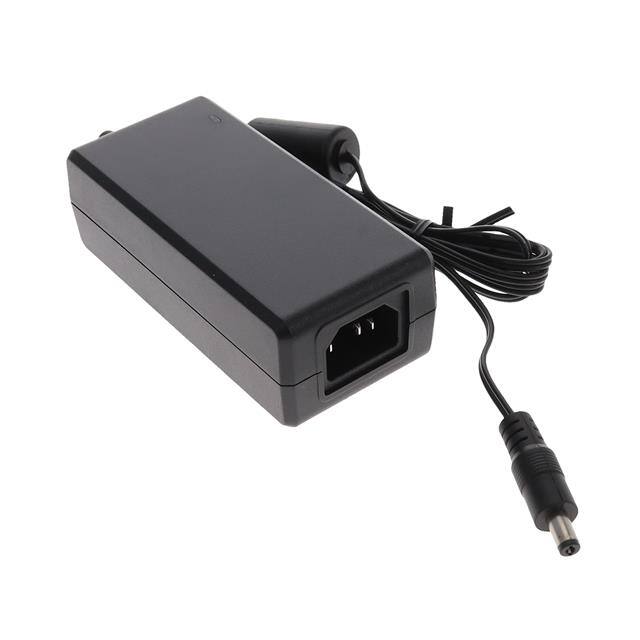

The Phihong USA PPL65U-560 is a 66W AC/DC desktop adapter designed for ITE (Commercial) applications. It provides a stable 56V DC output at 1.17A, utilizing an IEC 320-C14 input connector and a barrel plug output.
This adapter meets stringent efficiency and safety standards, including DOE Level VI, ErP/Ecodesign Directive 2009/125/EC, and EU CoC Tier 2 compliance. It offers essential protections such as over-voltage, short-circuit, and over-current protection. The unit operates within a 0°C to 40°C temperature range and features a non-vented, spill-proof case.
Key electrical specifications include an input voltage range of 90 to 264VAC and an average efficiency of at least 88.0%. The dimensions are 115mm x 53mm x 38mm, with a cable length of 1500mm. The adapter is approved by cULus and IEC standards, ensuring reliable performance for various electronic devices.
The output voltage is 56V DC at 1.17A, delivering 66W.
It accepts 90 to 264VAC at 47 to 63Hz.
The operating temperature is 0°C to +40°C.
It is a desktop (Class I) adapter.
It meets Level VI and CoC Tier 2 efficiency standards, with average efficiency ≥88%.
Over-voltage protection (150% max), over-current protection (180% max), and short-circuit protection with auto-recovery.
It uses a barrel plug with 2.1mm inner diameter and 5.5mm outer diameter, positive center polarity.
