| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage |

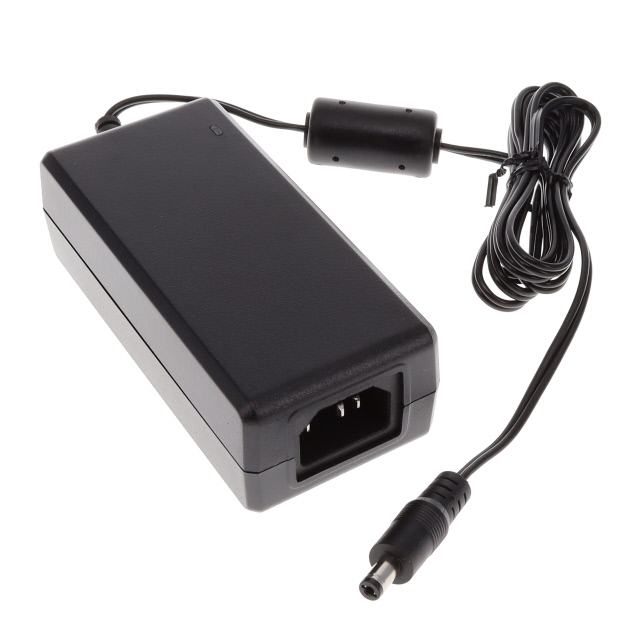

The Phihong USA PPL65U-240 is a versatile AC/DC desktop adapter designed for commercial applications. It delivers a stable 24V output with a maximum current of 2.71A, providing a total power of 65W.
This adapter meets stringent efficiency requirements, achieving Level VI and CoC Tier 2 compliance. It features a universal input voltage range of 90-264 VAC and utilizes an IEC 320-C14 input connector. The output is delivered via a standard barrel plug (2.1mm I.D. x 5.5mm O.D. x 10.0mm) with positive center polarization.
Designed for reliability, the PPL65U-240 operates within a temperature range of 0°C to 40°C. Its compact desktop form factor (115.0mm x 53.0mm x 38.0mm) makes it suitable for various setups. The adapter also includes a 59-inch (1.50m) cord, sold separately, and adheres to international safety standard 62368-1.
Key specifications include a low no-load power consumption of 150mW (Max) and approval from agencies like cULus and IEC, ensuring compliance and safety for ITE (Commercial) use.
90 to 264 VAC.
Box.
0°C to 40°C.
2.71A.
Level VI and CoC Tier 2.
115.0mm x 53.0mm x 38.0mm.
cULus and IEC 62368-1.
