| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cable Length | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Insulation Resistance | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Weight | |
| Width |

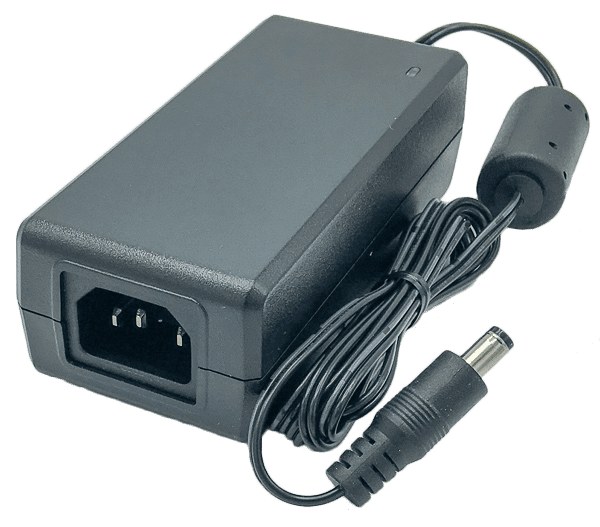

The Phihong USA PPL65U-120 is a 65W AC/DC desktop adapter designed for ITE (Commercial) applications. It provides a stable 12V DC output at a maximum current of 5A, delivering a total of 60W of power.
This adapter complies with stringent efficiency regulations, including DOE Level VI and EU CoC Tier 2. It operates within a wide AC input voltage range of 90 to 264VAC and features a standard IEC 320-C14 input connector. The output is delivered via a barrel plug with a 2.1mm inner diameter and 5.5mm outer diameter, featuring positive center polarization.
Key protection features include over-voltage, short-circuit (auto-recover), and over-current protection. The adapter is designed with a non-vented, spill-proof case and meets Class B EMI standards. Its compact dimensions are 115.0mm x 53.0mm x 38.0mm, making it suitable for various desktop setups.
12V DC.
90-264VAC.
0°C to +40°C.
Desktop (Class I) with dimensions 115mm x 53mm x 38mm.
Barrel plug, 2.1mm ID x 5.5mm OD, positive center.
Level VI and CoC Tier 2, with average efficiency ≥88%.
Over-voltage (150% max), over-current (180% max), and short-circuit with auto-recovery.
