| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Insulation Resistance | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Weight | |
| Width |

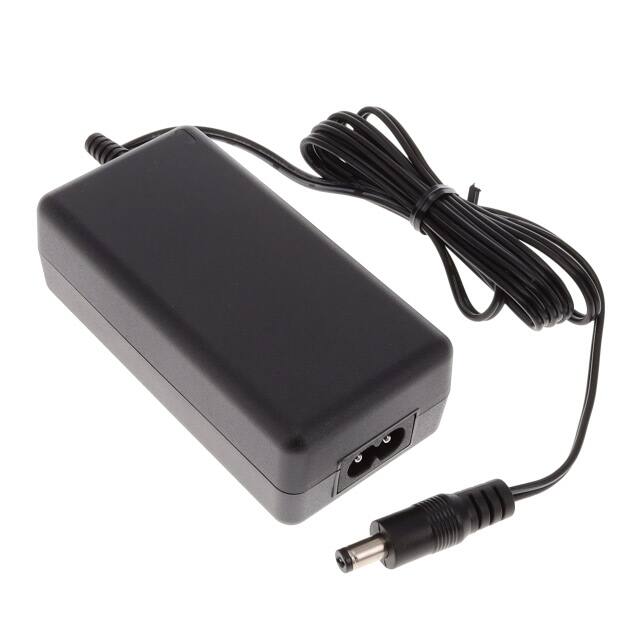

The Phihong USA PPL36W-240 is a 36W AC/DC desktop adapter designed for various applications. It delivers a stable 24V output at a maximum current of 1.5A.
This adapter complies with DOE Level VI efficiency standards and the ErP/Ecodesign Directive 2009/125/EC, ensuring energy efficiency. It features over-voltage, short-circuit, and over-current protection for reliable operation. The adapter operates within a wide input voltage range of 90 to 264 VAC and a frequency of 47 to 63 Hz.
With its compact dimensions of 99mm x 50mm x 33mm and a weight of 170g, the PPL36W-240 is suitable for desktop use. It includes an IEC 320-C8 input connector and a 1.5-meter DC output cable with a 2.1mm x 5.5mm barrel plug. The adapter is designed for ITE (Commercial) applications and operates in temperatures from 0°C to 40°C.
90 to 264 VAC.
Desktop (Class II).
0°C to 40°C.
24V DC at 1.5A (36W).
Level VI and CoC Tier 2, with average efficiency ≥84.2% at 115VAC and ≥87.6% at 230VAC.
Over-voltage (180% max), over-current (200% max), and short circuit protection with auto-recovery.
2.1mm I.D. x 5.5mm O.D. barrel plug with positive center polarization.
