| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Insulation Resistance | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Weight | |
| Width |

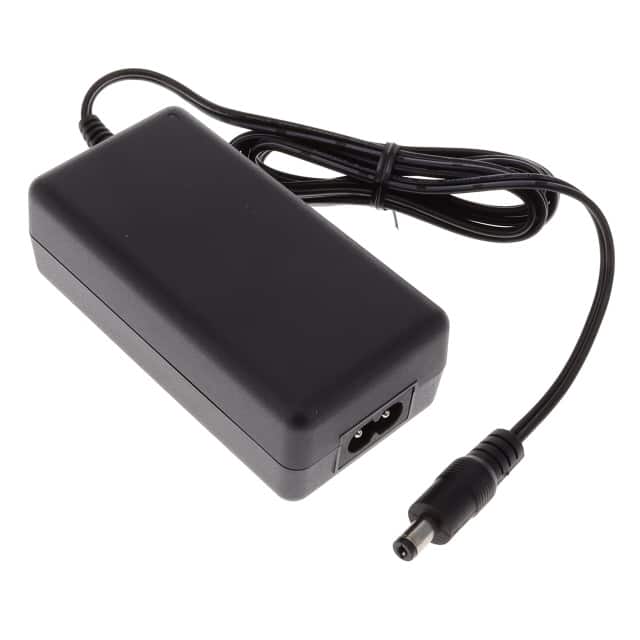

The Phihong USA PPL36W-120L6 is a versatile 36W AC/DC desktop adapter designed for a wide range of applications. It provides a stable 12V DC output with a maximum current of 3A, delivering a total power of 36W.
This adapter complies with stringent efficiency standards, including DOE Level VI and ErP/Ecodesign Directive 2009/125/EC – Regulation EU 2019/1782, ensuring reduced energy consumption. It features a universal input voltage range of 90 to 264VAC and operates at frequencies between 47 and 63Hz. Safety and compliance are assured with approvals from cULus and IEC, adhering to standards like IEC 62368-1. The adapter also meets EMI/EMC requirements, including FCC Part 15 Class B and EN 55032 Class B.
Designed for reliability, the PPL36W-120L6 includes over-voltage, short-circuit, and over-current protection. Its non-vented, spill-proof case makes it suitable for various environments. The adapter has a compact desktop form factor with dimensions of 99mm x 50mm x 33mm and comes with a 1.50m DC cable featuring a 2.1mm x 5.5mm barrel plug with a positive center pin. The input connector is an IEC 320-C8 type, and it is designed for international region utilization.
The PPL36W-120L6 adapter provides a 12V DC output voltage with a maximum current of 3A.
The PPL36W-120L6 adapter has a power rating of 36W.
The adapter accepts an AC input voltage range of 90 to 264VAC and an AC input frequency range of 47 to 63Hz.
Yes, the PPL36W-120L6 is DOE Level VI Efficiency Compliant and ErP/Ecodesign Directive 2009/125/EC – Regulation EU 2019/1782 Compliant.
The adapter has cULus and IEC safety approvals.
The adapter measures 99mm in length, 50mm in width, and 33mm in height.
It uses a barrel plug with dimensions of 2.1mm inner diameter, 5.5mm outer diameter, and a 10.0mm length, with a positive center pin.
