| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Insulation Resistance | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Power | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Weight | |
| Width |

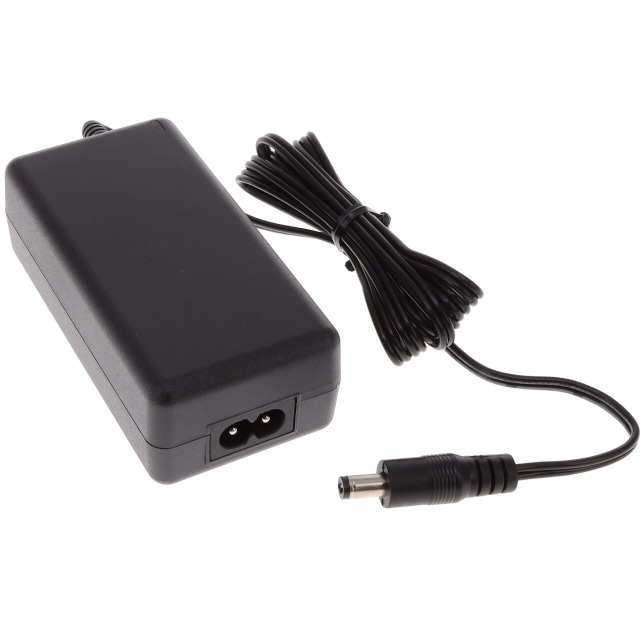

The Phihong USA PPL36W-090 is an AC/DC desktop adapter designed for ITE (Commercial) applications. It provides a stable 9V DC output with a maximum current of 3.34A, delivering up to 30.06W of power.
This adapter complies with DOE Level VI efficiency standards and the ErP/Ecodesign Directive 2009/125/EC – Regulation EU 2019/1782, ensuring energy efficiency. It features over-voltage, short-circuit, and over-current protection for reliable operation. The operating temperature range is 0°C to 40°C.
Key specifications include a wide input voltage range of 90 to 264VAC and an input connector type of IEC 320-C8. The output is delivered via a 2.1mm x 5.5mm x 10.0mm barrel plug with positive center polarization. The adapter has dimensions of 99.0mm x 50.0mm x 33.0mm and a weight of 170g. It is housed in a non-vented, spill-proof case.
Compliance includes cULus and IEC standards, with EMI emissions meeting FCC Part 15 Class B and EN 55032/CISPR 32 Class B. The unit is RoHS3 compliant and has an MSL rating of 1 Unlimited.
9.0V DC.
3.34A.
30.06W.
90 to 264VAC at 47 to 63Hz.
Level VI and CoC Tier 2.
0°C to 40°C.
Desktop (Class II) with IEC 320-C8 input and 2.1mm x 5.5mm barrel plug output.
