| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Form Factor | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Insulation Resistance | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Weight | |
| Width |

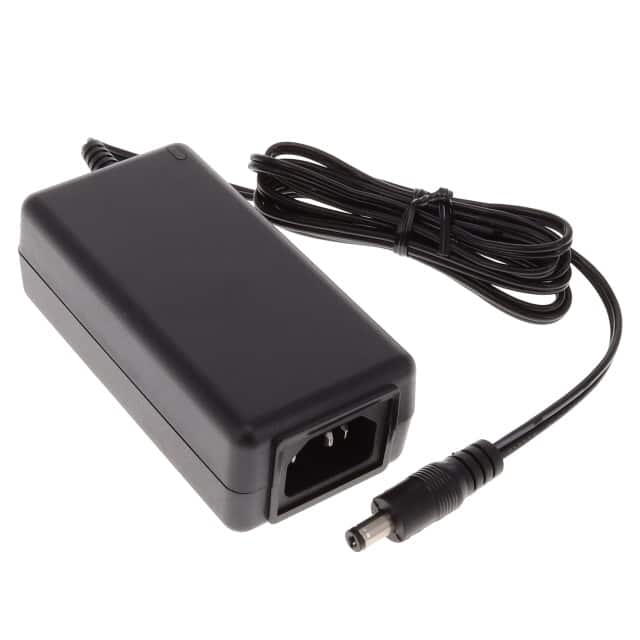

The Phihong USA PPL36U-180 is a 36W AC/DC desktop power adapter designed for ITE (Commercial) applications. It delivers a stable 18V output at up to 2A current, with a maximum power rating of 36W.
This adapter features an IEC 320-C14 input connector and a standard 2.1mm x 5.5mm barrel plug output with a positive center pin. It operates within a wide AC input voltage range of 90 to 264VAC and meets stringent efficiency requirements, including DOE Level VI and EU CoC Tier 2 compliance. The unit is designed with over-voltage, short-circuit, and over-current protection for enhanced safety.
With dimensions of 100mm x 50mm x 33mm, the PPL36U-180 has a non-vented, spill-proof case. It operates reliably in temperatures from 0°C to 40°C and complies with various safety and EMC standards, including cULus, IEC 62368-1, and FCC Part 15 Class B emissions. The adapter is suitable for networking equipment, peripherals, and consumer electronics.
The input voltage range is 90 to 264 VAC.
The output is 18V at 2A, with a maximum power of 36W.
It is a desktop (Class I) adapter with dimensions 100.0mm x 50.0mm x 33.0mm and weight 170g.
The operating temperature range is 0°C to 40°C.
It meets Level VI efficiency and CoC Tier 2, with average efficiency ≥87% at 115VAC and ≥87.6% at 230VAC.
The input connector is an IEC 320-C14, and the output is a barrel plug with 2.1mm I.D. x 5.5mm O.D. on a 1.5m cable.
It complies with safety standard 62368-1 and EMI emissions per FCC Part 15 Class B, CAN ICES-003(B), and EN 55032/CISPR 32 Class B.
