| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Insulation Resistance | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Weight | |
| Width |

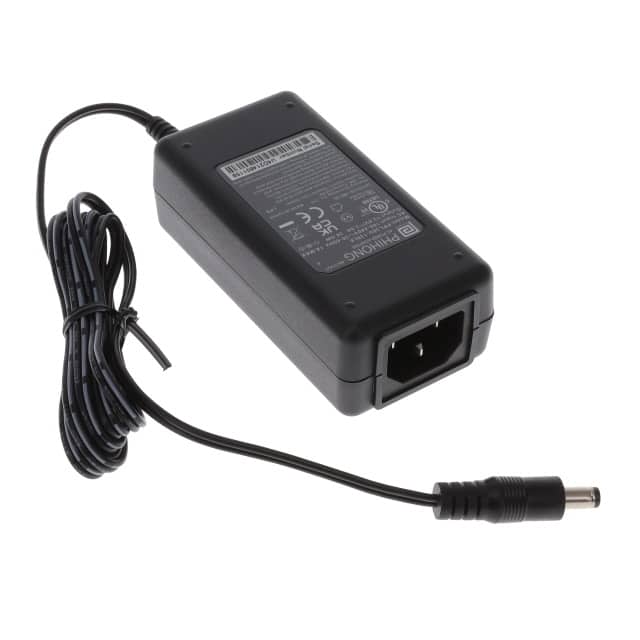

The Phihong USA PPL36U-120L6 is a versatile 36W AC/DC desktop power adapter designed for various applications. It delivers a stable 12V output at a maximum current of 3A.
This adapter complies with stringent efficiency standards, including DOE Level VI and ErP/Ecodesign Directive 2009/125/EC – Regulation EU 2019/1782. It also meets EU CoC Tier 2 requirements (except for 5V and 12V models). The unit offers robust protection features, including over-voltage, short-circuit, and over-current protection.
Designed for global use, the PPL36U-120L6 operates within a wide AC input voltage range of 90 to 264VAC and a frequency of 47 to 63Hz. It features an IEC 320-C14 input connector and a standard 2.1mm x 5.5mm x 10.0mm barrel plug output with a positive center pin. The adapter's dimensions are 100mm x 50mm x 33mm, making it suitable for desktop use.
Key applications include networking equipment, peripherals, and consumer electronics. The adapter is certified to cULus and IEC 62368-1 standards and meets Class B EMI emissions requirements.
The input voltage range is 90 to 264 VAC at 47 to 63 Hz.
The output is 12V at 3A (36W).
It meets Level VI efficiency with average efficiency ≥84.2% at 115VAC and ≥87.6% at 230VAC.
The operating temperature range is 0°C to 40°C.
Over-voltage protection (180% max), over-current protection (200% max), and auto-recover short circuit protection.
It is certified to cULus and IEC 62368-1, and complies with FCC Part 15 Class B, CAN ICES-003(B), EN 55032/CISPR 32 Class B, and IEC 61000-3-2/3-3.
It is a Desktop (Class I) adapter.
