| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Average Efficiency | |
| Cord Length | |
| Current | |
| Dimensions | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Insulation Resistance | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Weight | |
| Width |

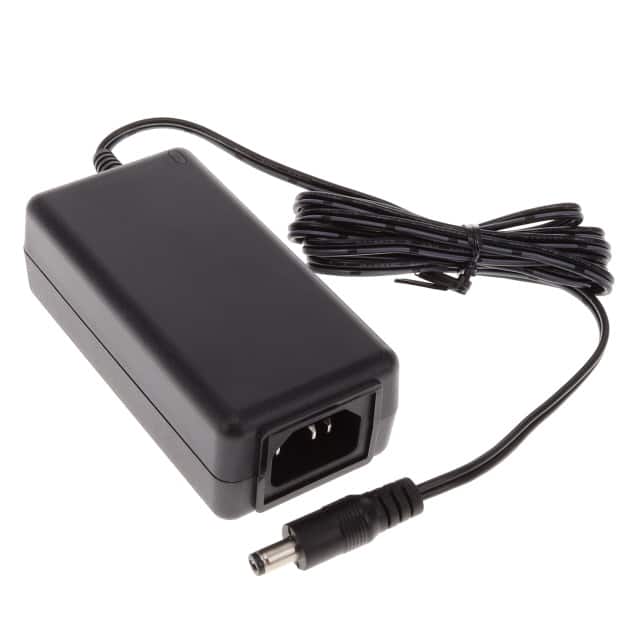

The Phihong USA PPL36U-090 is a versatile AC/DC desktop adapter designed for various ITE (Commercial) applications. It delivers a stable 9V DC output at a maximum current of 3.34A, providing a total power of 30.06W. The adapter operates with a wide input voltage range of 90 to 264VAC and features an IEC 320-C14 input connector, making it suitable for international use.
This adapter is built with robust protection features, including over-voltage, short-circuit, and over-current protection, ensuring safe and reliable operation. It boasts high efficiency, meeting DOE Level VI and EU CoC Tier 2 standards, with an average efficiency of 87.6% at 230VAC. The unit is designed in a compact desktop form factor with dimensions of 100mm x 50mm x 33mm and includes a 1.50m cord.
Compliance with international standards such as cULus, IEC 62368-1, and EMI standards like FCC Part 15 Class B and EN 55032 Class B highlights its suitability for commercial and industrial environments. The adapter also adheres to RoHS3, REACH, and MSL 1 specifications.
The PPL36U-090 adapter has an output voltage of 9.0V.
The maximum current output for the PPL36U-090 is 3.34A.
The PPL36U-090 adapter has an output power of 30.06W.
The input voltage range for the PPL36U-090 adapter is 90 to 264VAC.
The operating temperature range for the PPL36U-090 is 0°C to +40°C.
Yes, the PPL36U-090 is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the PPL36U-090 is 1 Unlimited.
