| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Average Efficiency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Insulation Resistance | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Weight | |
| Width |

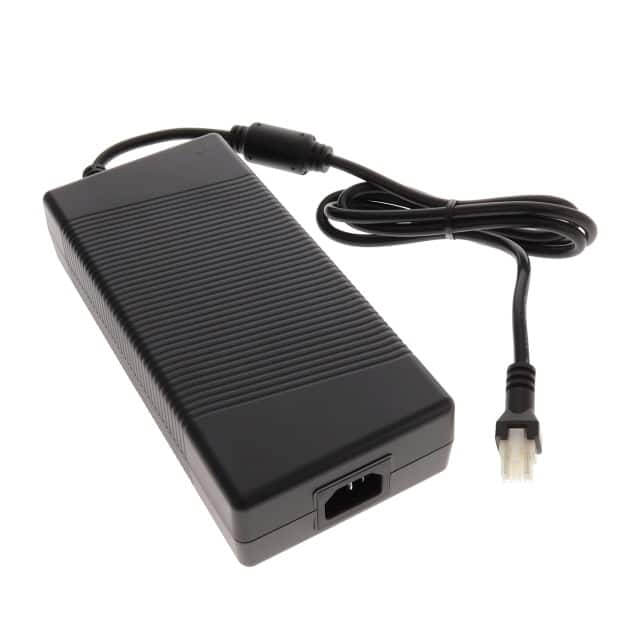

The Phihong USA PPL250U-480L6 is a 250W AC/DC desktop adapter designed for international use. It delivers a stable 48V output voltage with a maximum current of 5.2A, suitable for various ITE (Commercial) applications.
This adapter features an IEC 320-C14 input connector and a 6-position rectangular output connector. It operates within a wide AC input voltage range of 90 to 264VAC and meets DOE Level VI and ErP/Ecodesign Directive 2009/125/EC standards for energy efficiency. The device includes over-voltage, short-circuit, and over-current protection for enhanced reliability.
With dimensions of 204.0mm x 94.0mm x 43.5mm, it is designed for desktop placement. The operating temperature range is from 0°C to 40°C, making it suitable for various environments. The adapter also complies with Class B EMI emissions standards.
The output voltage is 48V.
The maximum output power is 250W.
It uses an IEC 320-C14 input connector.
The operating temperature range is 0°C to 40°C.
Yes, it is DOE Level VI and CoC Tier 2 compliant.
