| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Tape & Reel | |
| Voltage | |
| Width |

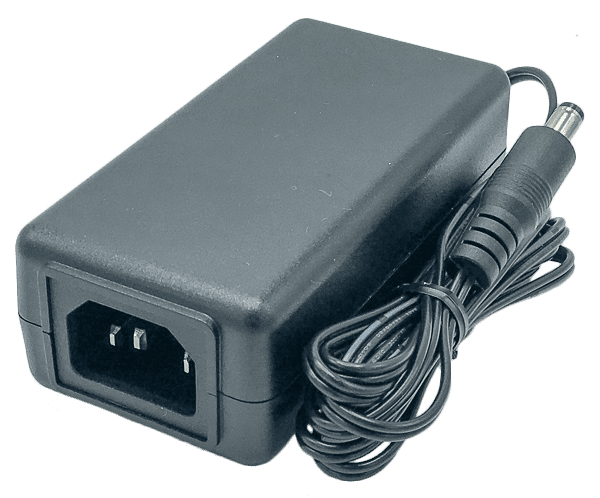

The Phihong USA PPL24U-480 is an AC/DC desktop adapter designed for commercial ITE applications. It delivers a stable 48V output at 500mA, providing a total of 24W of power.
This adapter features an IEC 320-C14 input connector and a standard barrel plug output (2.1mm I.D. x 5.5mm O.D. x 10.0mm) with positive center polarization. It is designed for international use and complies with safety standard 62368-1, carrying cULus and IEC approval agencies.
The PPL24U-480 operates within a temperature range of 0°C to 40°C and meets Level VI efficiency standards, with a maximum no-load power consumption of 75mW. The unit measures 100.0mm x 50.0mm x 33.0mm and requires a separate power cord.
Compliance includes RoHS3, REACH Unaffected, and Moisture Sensitivity Level 1. This adapter is suitable for various ITE (Commercial) applications requiring a reliable 48V power source.
48V
500mA
0°C to 40°C
Barrel plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm, positive center
Level VI and CoC Tier 2
cULus and IEC
100.0mm x 50.0mm x 33.0mm (3.94" x 1.97" x 1.30")
