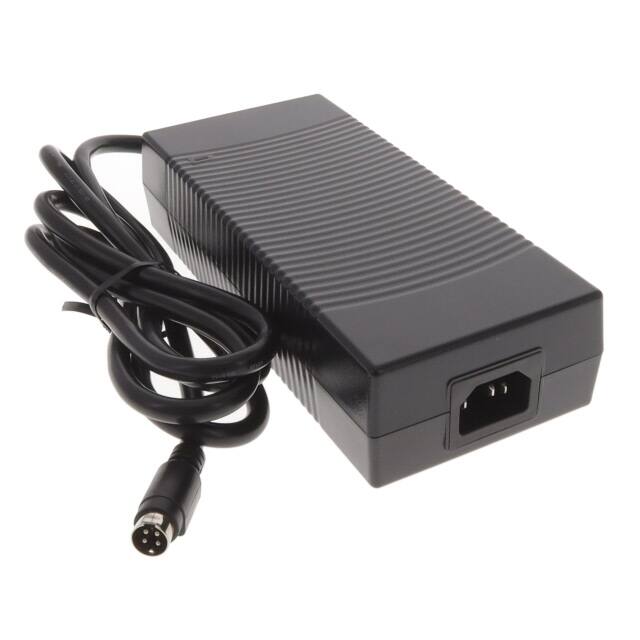

The Phihong USA PPL200U-240 is a 199W AC/DC desktop adapter designed for commercial applications. It provides a stable 24V output at 8.3A, suitable for various ITE devices.
Key electrical specifications include an input voltage range of 90 to 264VAC and a frequency of 47 to 63Hz. The adapter boasts DOE Level VI efficiency and complies with ErP/Ecodesign Directive 2009/125/EC – Regulation EU 2019/1782. It incorporates over-voltage, short-circuit, and over-current protection for enhanced safety.
With a non-vented, spill-proof case, the PPL200U-240 operates within a temperature range of 0°C to 40°C. Its dimensions are 183.2mm x 81mm x 42.3mm, and it features a 4-pin DIN output connector and an IEC 320-C14 input connector. The adapter also meets Class B EMI standards.
The PPL200U-240 adapter has a nominal output voltage of 24.0V.
The maximum output current for the PPL200U-240 is 8.3A.
The PPL200U-240 adapter has a power rating of 199 W.
The PPL200U-240 accepts an AC input voltage range of 90 to 264VAC.
The PPL200U-240 meets DOE Level VI efficiency standards and CoC Tier 2.
The adapter operates within a temperature range of 0°C to 40°C.
The PPL200U-240 uses a 4-pin DIN output connector.
