| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Average Efficiency | |
| Cord Length | |
| Current | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Insulation Resistance | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Width |

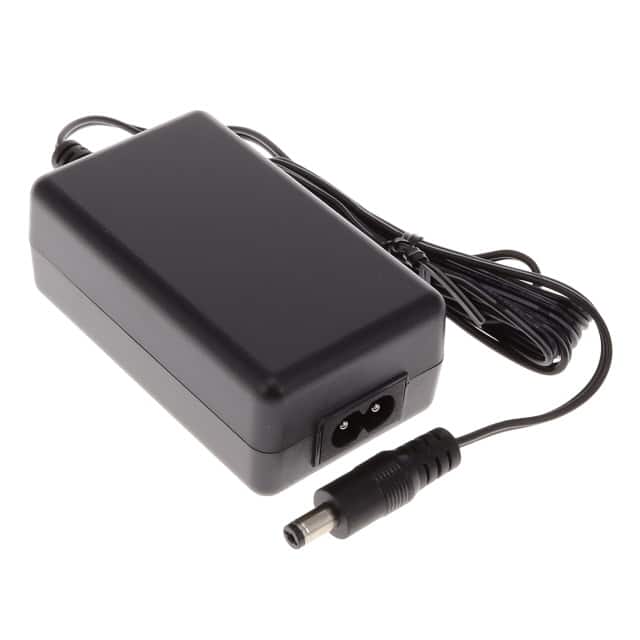

The Phihong USA PPL18W-150 is an AC/DC desktop adapter designed for commercial applications. It provides a stable 15V DC output with a maximum power of 20W and a current rating of 1.3A.
This adapter features a universal input voltage range of 90 to 264 VAC and meets DOE Level VI and ErP/Ecodesign Directive 2009/125/EC standards for energy efficiency. It includes over-voltage, short-circuit, and over-current protection for reliable operation. The input connector is an IEC 320-C8 type, and the output is delivered via a 2.1mm x 5.5mm x 10.0mm barrel plug with a positive center pin.
With a compact desktop form factor (Class II), the PPL18W-150 is suitable for various ITE (Commercial) applications. It operates within a temperature range of 0°C to 40°C and has a low no-load power consumption of 75mW maximum. Safety approvals include cULus and IEC standards, with EMI emissions compliant to FCC Part 15 Class B and EN 55032/CISPR 32 Class B.
The input voltage range is 90 to 264 VAC.
The operating temperature range is 0°C to 40°C.
The output voltage is 15V and the output power is 20W.
It meets Level VI and CoC Tier 2 efficiency standards.
It uses an IEC 320-C8 input connector.
The output is a barrel plug with 2.1mm I.D. x 5.5mm O.D. x 10.0mm, positive center polarity.
It complies with safety standard 62368-1 and is approved by cULus and IEC.
