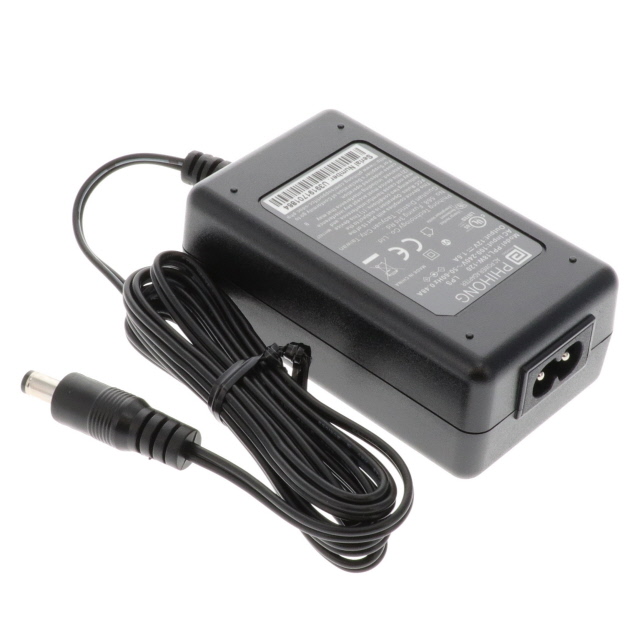

The Phihong USA PPL18W-120 is an AC/DC external desktop adapter designed for commercial ITE applications. This Class II adapter provides a stable 12V output at a maximum current of 1.6A, delivering a total power of 19W.
It features a wide input voltage range of 90-264 VAC and an IEC 320-C8 input connector. The adapter complies with Efficiency Level VI and CoC Tier 2 standards, ensuring energy efficiency. Its output is delivered via a standard 2.1mm I.D. x 5.5mm O.D. barrel plug.
With dimensions of 88.5mm x 50.0mm x 34.0mm, the PPL18W-120 is compact for desktop use. It operates within a temperature range of 0°C to 40°C and has a low no-load power consumption of 75mW maximum. The adapter is certified by cULus and IEC standards, adhering to IEC 62368-1.
The PPL18W-120 has an output voltage of 12V and a maximum output current of 1.6A.
The PPL18W-120 adapter has a power rating of 19W.
The input voltage range for the PPL18W-120 is 90 to 264 VAC.
The PPL18W-120 meets Efficiency Level VI and CoC Tier 2.
The dimensions of the PPL18W-120 adapter are 88.5mm x 50.0mm x 34.0mm.
The operating temperature range for the PPL18W-120 is 0°C to 40°C.
