| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Insulation Resistance | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Weight | |
| Width |

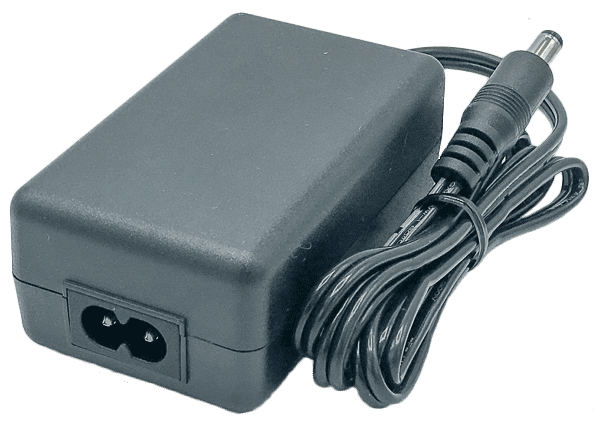

The Phihong USA PPL18W-090 is a versatile 20W AC/DC desktop adapter designed for ITE (Commercial) applications. It delivers a stable 9V output with a maximum current of 2.2A.
This adapter meets stringent efficiency requirements, complying with DOE Level VI and ErP/Ecodesign Directive 2009/125/EC – Regulation EU 2019/1782. It is also compliant with EU CoC Tier 2 (except for specific voltage models) and safety standards such as cULus and IEC 62368-1.
Key features include over-voltage, short-circuit, and over-current protection for reliable operation. The adapter operates within a wide AC input voltage range of 90 to 264VAC and has a low no-load power consumption of 75mW max. Its compact dimensions (88.5mm x 50.0mm x 34.0mm) and desktop form factor make it suitable for various electronic systems.
The PPL18W-090 utilizes an IEC 320-C8 input connector and a standard 2.1mm x 5.5mm x 10.0mm barrel plug output with positive center polarization. It is designed for international use and operates within a temperature range of 0°C to 40°C.
The input voltage range is 90 to 264 VAC.
It provides 9V output at 2.2A (20W).
It meets Level VI and CoC Tier 2 efficiency standards.
It uses an IEC 320-C8 input connector.
It includes over-voltage protection at 16V max, over-current protection at 6A max, and auto-recover short-circuit protection.
It measures 88.5mm x 50mm x 34mm and weighs 170g.
The operating temperature range is 0°C to +40°C.
